Product Model

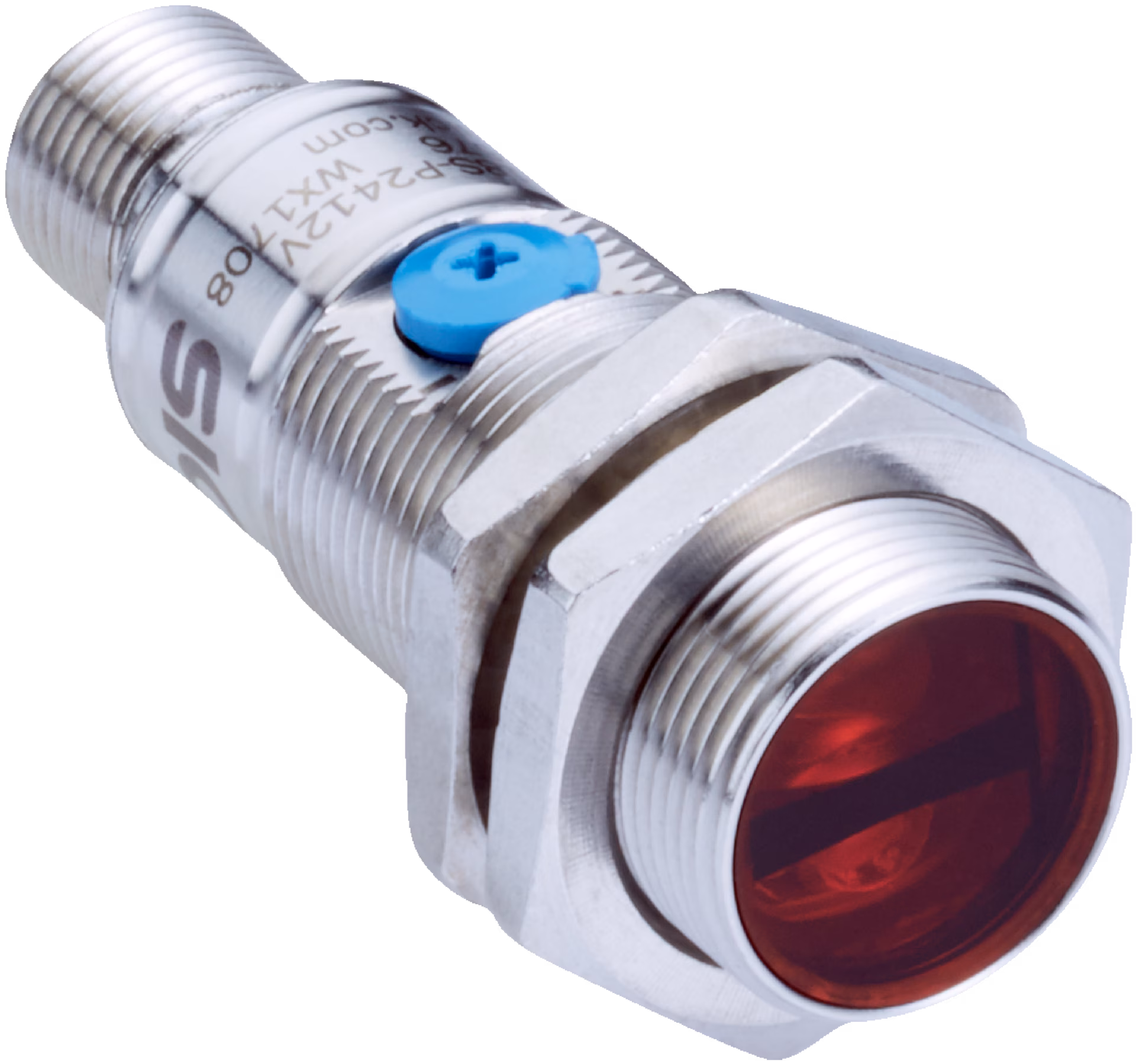

GRTE18S-N2462V
Selling Points
- 1Detects objects from 5 mm to 1,000 mm with high accuracy.
- 2Constructed with metal housing for long-lasting performance in harsh environments.
- 3Features a 270° adjustable potentiometer for precise setting of sensing range.
- 4Equipped with a bright, multi-color status LED for clear indication of sensor status.
- 5Suitable for hygienic and washdown zones due to its resistance to chemical cleaning agents.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Energetic |
Dimensions (W x H x D) | 18 mm x 18 mm x 55.9 mm | Housing design (light emission) | Cylindrical |
Housing length | 55.9 mm | Thread length | 31.7 mm |
Thread diameter (housing) | M18 x 1 | Optical axis | Axial |
Sensing range max. | 5 mm ... 1,000 mm | Sensing range | 10 mm ... 800 mm |
Type of light | Visible red light | Light source | LED |
Light spot size (distance) | Ø 45 mm (800 mm) | Wave length | 650 nm |
Adjustment | Potentiometer, 270° | Indication_LED green | Operating indicatorStatic on: power on |
Indication_LED yellow | Status of received light beamStatic on: object presentStatic off: object not present | Special applications | Hygienic and washdown zones |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 30 mA | Switching output | NPN |
Output function | Complementary | Switching mode | Light/dark switching |
Signal voltage NPN HIGH/LOW | Approx. V#!#/ ≤ 3 V | Output current Imax. | ≤ 100 mA |
Response time | < 1,000 µs | Switching frequency | 500 Hz |
Connection type | Male connector M12, 4-pin | Circuit protection | A7)#!#B8)#!#D9) |
Protection class | III | Weight | 45 g |
Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) | Optics material | Plastic, PMMA |
Tightening torque, max. | 90 Nm | Enclosure rating | IP67#!#IP6810)#!#IP69K11) |
Items supplied | Fastening nuts (2 x) | Electromagnetic compatibility (EMC) | EN 60947-5-2 |
Ambient operating temperature | –25 °C ... +55 °C | Ambient temperature, storage | –30 °C ... +75 °C |
UL File No. | NRKH.E348498 & NRKH7.E348498 |
Specifications may be subject to change without notice
