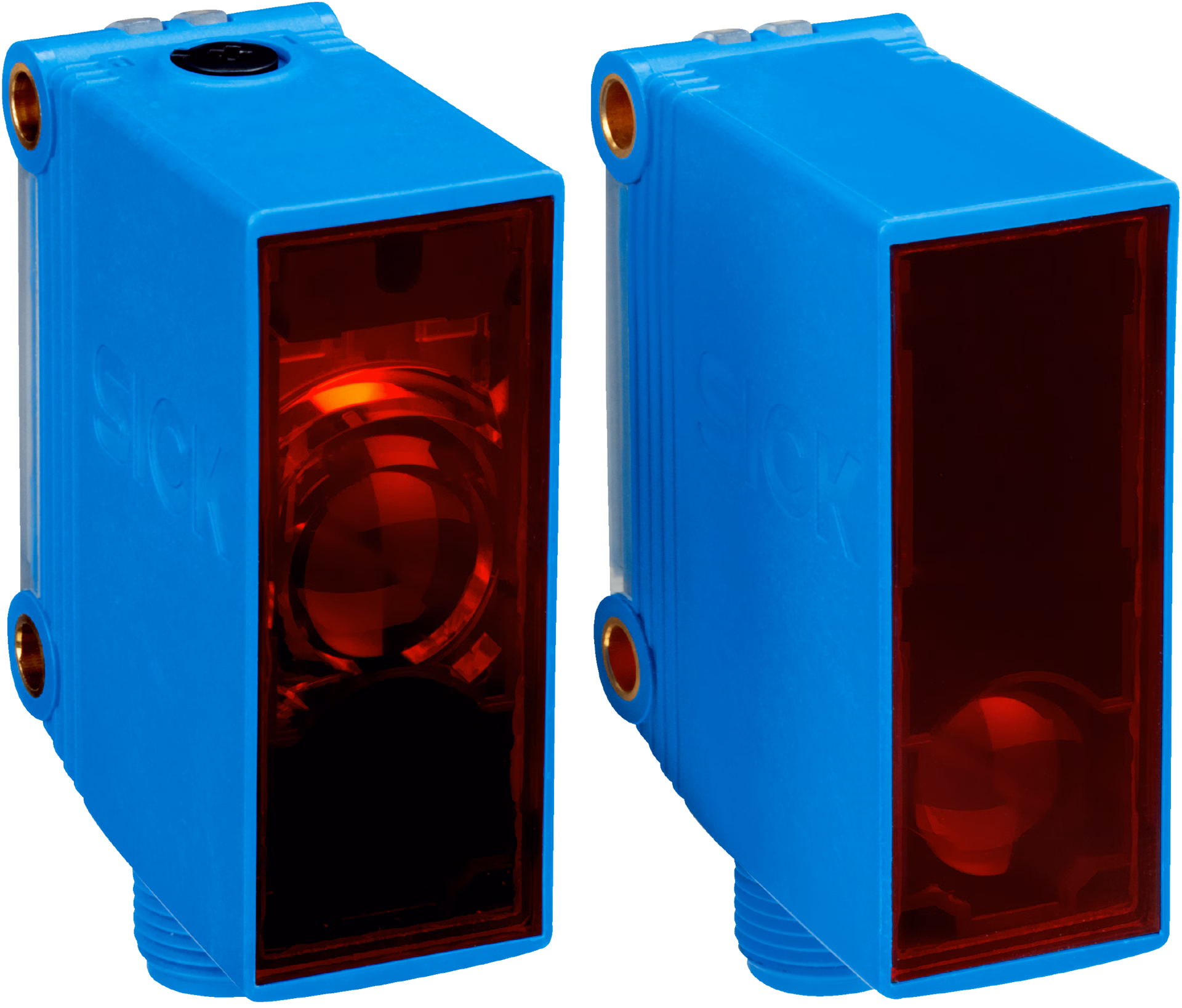

Product Model
GSE10-P4111P01
Selling Points
- 1High accuracy and reliability for precise detection.
- 2Robust design for long-lasting performance in harsh environments.
- 3Easy installation and integration into various industrial systems.
- 4Compact size for space-efficient installations.
- 5Compatible with a wide range of industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Through-beam photoelectric sensor | Dimensions (W x H x D) | 20 mm x 50 mm x 39 mm |
Housing design (light emission) | Rectangular | Sensing range max. | 0 m ... 40 m |
Sensing range | 0 m ... 35 m | Type of light | Visible red light |
Light source | PinPoint LED | Light spot size (distance) | Ø 180 mm (15 m) |
Wave length | 625 nm | Adjustment | None |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Power consumption, sender | ≤ 15 mA | Power consumption, receiver | ≤ 20 mA |
Switching output | PNP | Switching mode | Light/dark switching |
Switching mode selector | Selectable via light/dark selector | Output current Imax. | ≤ 100 mA |
Response time | ≤ 500 µs | Switching frequency | 1,000 Hz |
Connection type | Male connector M12, 4-pin | Circuit protection | A5)#!#B6)#!#C7)#!#D8) |
Protection class | III | Weight | 70 g |
Housing material | Plastic, ABS/PMMA | Enclosure rating | IP67 |
Items supplied | Mounting system BEF-KHSQ12R02 (premounted) | Electromagnetic compatibility (EMC) | EN 60947-5-2 |
Test input | Sender OFF at "Test" 0 V | Ambient operating temperature | –30 °C ... +60 °C |
Ambient temperature, storage | –40 °C ... +70 °C | UL File No. | NRKH.E348498 & NRKH7.E348498 |
More standards | UL325 |
Specifications may be subject to change without notice
