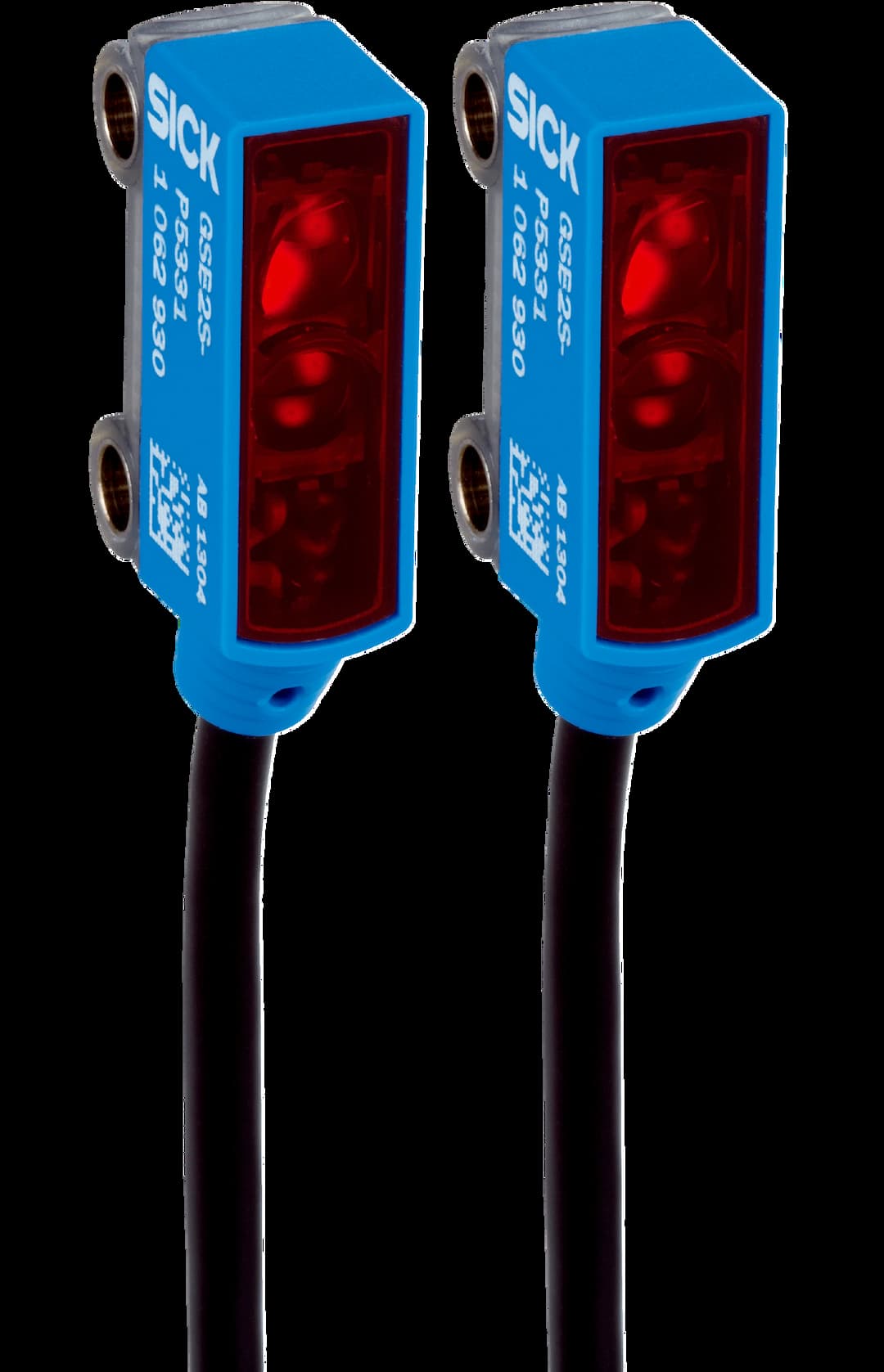

Product Model
GSE2S-E1321S03
Selling Points
- 1High accuracy for precise detection
- 2Reliable performance in various industrial settings
- 3Compact design for easy integration
- 4Long-lasting durability with minimal maintenance
- 5Compatible with a wide range of automation systems
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Through-beam photoelectric sensor | Dimensions (W x H x D) | 7.7 mm x 21.8 mm x 13.5 mm |
Housing design (light emission) | Rectangular | Sensing range max. | 0 m ... 3 m |
Sensing range | 0 m ... 2 m | Type of light | Infrared light |
Light source | LED | Light spot size (distance) | Ø 145 mm (1,500 mm) |
Wave length | 850 nm | Adjustment | None |
Special feature | For the sender side cable, the black wire will be cut so that only the power cables are left (brown and blue) | Special features | Mounting hole Ø 2.5 mm threaded bushes |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 20 mA | Switching output | NPN |
Switching mode | Dark switching | Output current Imax. | ≤ 50 mA |
Response time | < 0.6 ms | Switching frequency | 800 Hz |
Connection type | Cable, 3-wire, 2 m | Cable material | Plastic, PVC |
Cable diameter | Ø 3 mm | Circuit protection | A7)#!#C8)#!#D9) |
Weight | 72.2 g | Housing material | Plastic, ABS |
Optics material | Plastic, PMMA | Enclosure rating | IP67 |
Special feature | For the sender side cable, the black wire will be cut so that only the power cables are left (brown and blue) | Ambient operating temperature | –25 °C ... +50 °C |
Ambient temperature, storage | –40 °C ... +75 °C | UL File No. | NRKH.E181493 |
Specifications may be subject to change without notice
