Product Model

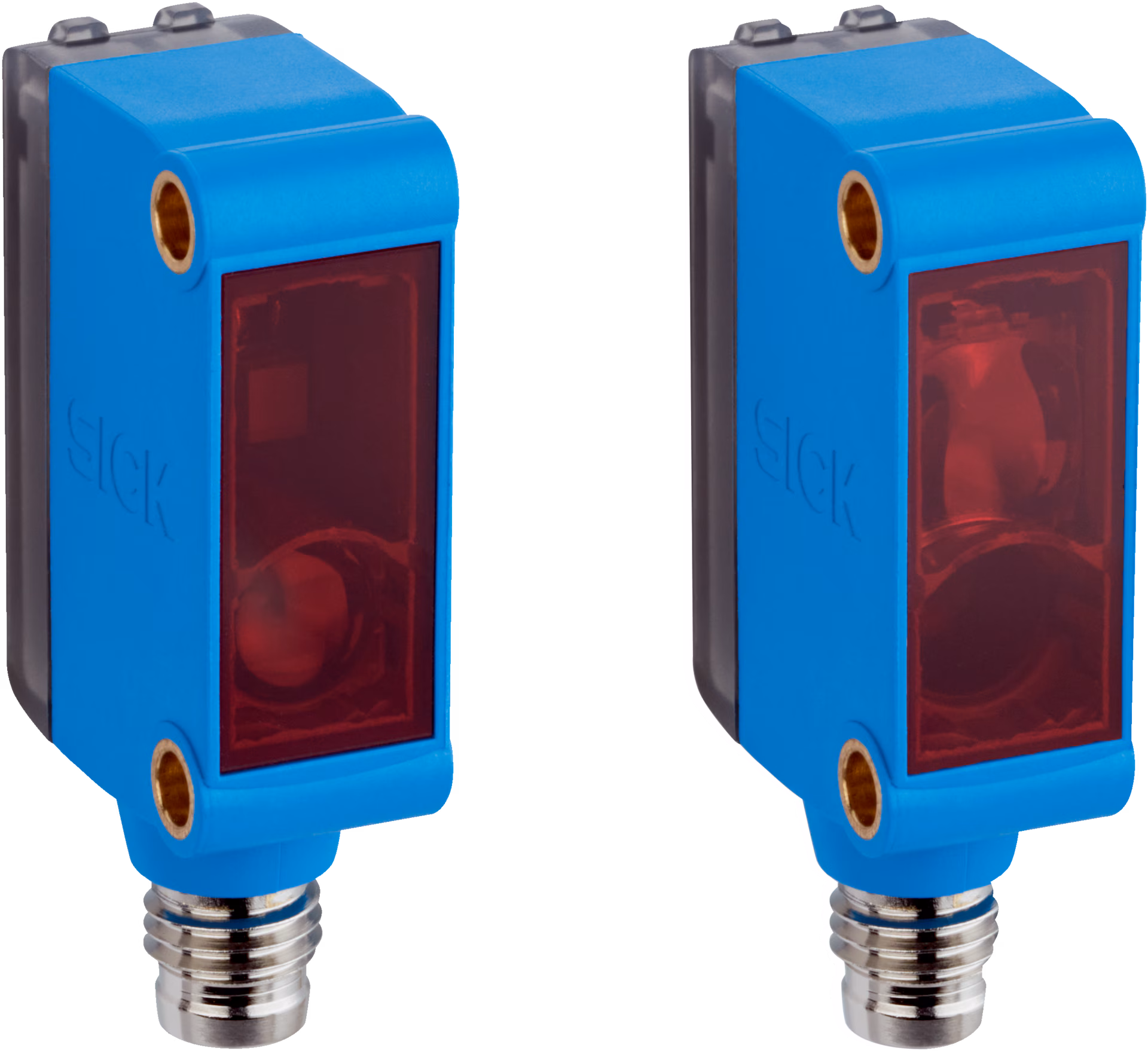

GSE6-N4111
Selling Points
- 1Highly Visible Red Light: Utilizes a PinPoint LED with a wavelength of 650 nm for bright and precise light spots.
- 2Long Service Life: Designed to last up to 100,000 hours at +25 °C, ensuring reliable operation over extended periods.
- 3Versatile Sensing Range: Covers a maximum sensing range of 0 m to 15 m, with adjustable settings for optimal performance.
- 4Durable Construction: Features an IP67-rated enclosure made from ABS/PC, providing protection against harsh environments.
- 5Easy Installation: Equipped with a user-friendly design and large indicator LEDs for easy alignment and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Through-beam photoelectric sensor | Sensing range max. | 0 m ... 15 m |
Sensing range | 0 m ... 10 m | Polarisation filters | No |
Emitted beam_Light source | PinPoint LED1) | Emitted beam_Type of light | Visible red light |
Emitted beam_Light spot size (distance) | Ø 375 mm (12 m) | Key LED figures_Wave length | 650 nm |
Adjustment | None | Part number of individual components | 2058059 GS6-D4311 2058079 GE6-N4111 |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | ± 10 % |
Current consumption | 30 mA | Protection class | III |
Digital output_Type | NPN | Digital output_Switching mode | Light/dark switching |
Digital output_Switching mode selector | Selectable via light/dark selector | Digital output_Signal voltage NPN HIGH/LOW | Approx. VS/ ≤ 3 V |
Digital output_Output current Imax. | ≤ 100 mA4) | Digital output_Response time | < 500 µs5) |
Digital output_Switching frequency | 1,000 Hz6) | Circuit protection | A7)#!#B8)#!#D9) |
Housing | Rectangular | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
Connection | Male connector M8, 4-pin | Material_Housing | Plastic, ABS/PC |
Material_Front screen | Plastic, PMMA | Weight | 40 g |
Specifications may be subject to change without notice
