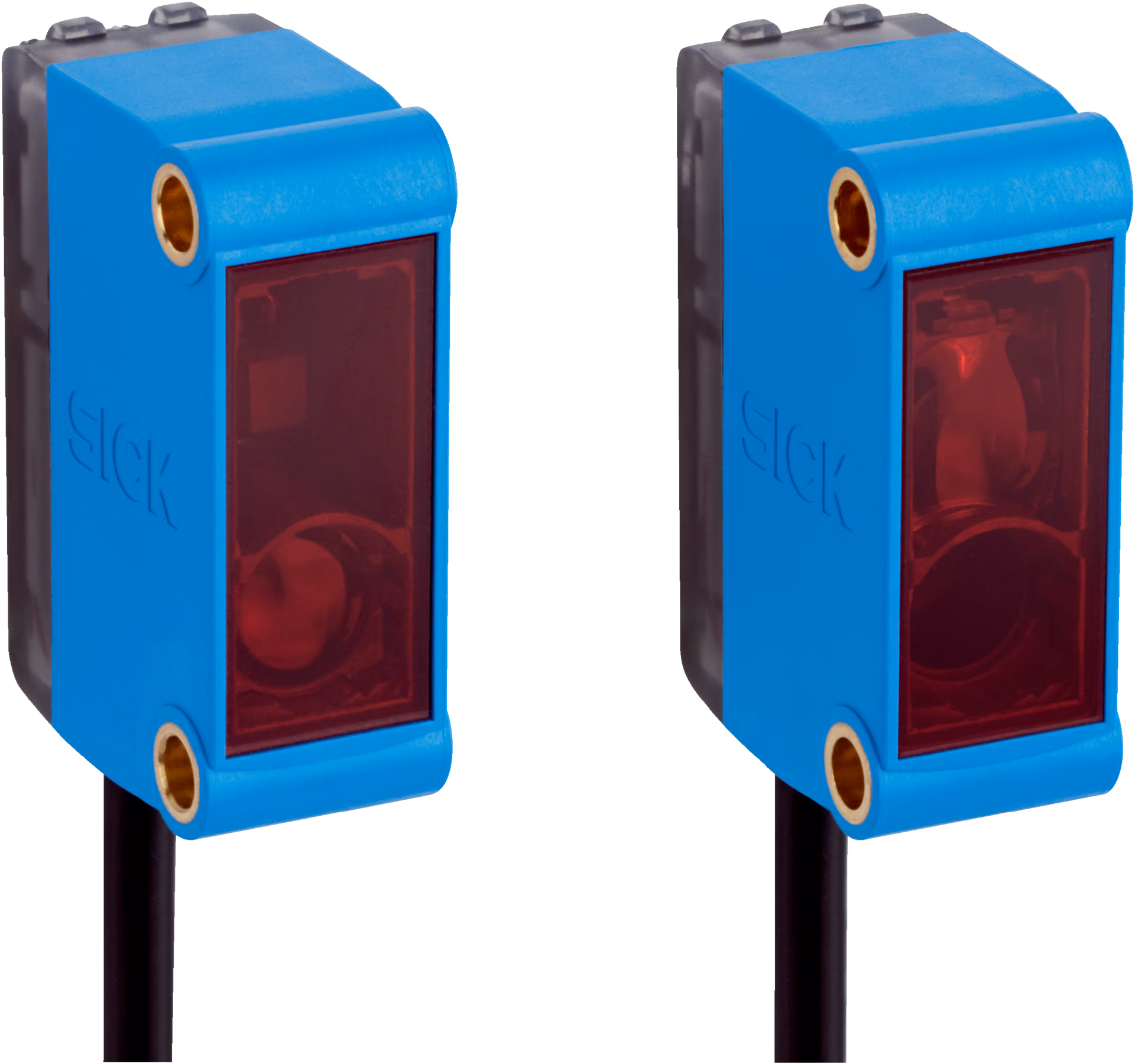

Product Model
GSE6-P0111S51
Selling Points
- 1Equipped with SICK's latest ASIC technology, ensuring high performance and excellent reliability.
- 2Features durable metal threaded inserts for quick and easy mounting, enhancing durability.
- 3Offers an IP67 enclosure rating, providing protection against dust and water, ideal for harsh environments.
- 4Includes large, user-friendly potentiometers for easy adjustment of the sensor's settings.
- 5Suitable for a wide range of industrial applications, including photoelectric proximity sensing and background suppression.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Through-beam photoelectric sensor | Sensing range max. | 0 m ... 15 m |
Sensing range | 0 m ... 10 m | Polarisation filters | No |
Emitted beam_Light source | PinPoint LED1) | Emitted beam_Type of light | Visible red light |
Emitted beam_Light spot size (distance) | Ø 375 mm (12 m) | Key LED figures_Wave length | 650 nm |
Adjustment | None | Part number of individual components | 2078209 GS6-D0311S51 2078210 GE6-P0111S51 |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | ± 10 % |
Current consumption | 30 mA | Protection class | III |
Digital output_Type | PNP | Digital output_Switching mode | Light/dark switching |
Digital output_Switching mode selector | Selectable via light/dark selector | Digital output_Signal voltage PNP HIGH/LOW | VS- (≤ 3 V) / approx. 0 V |
Digital output_Output current Imax. | ≤ 100 mA4) | Digital output_Response time | < 500 µs5) |
Digital output_Switching frequency | 1,000 Hz6) | Circuit protection | A7)#!#B8)#!#D9) |
Housing | Rectangular | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
Connection | Cable with connector, JST, 3-pin, 600 mm | Connection detail_Conductor size | 0.14 mm² |
Connection detail_Length of cable (L) | 600 mm1) | Material_Housing | Plastic, ABS/PC |
Material_Front screen | Plastic, PMMA | Material_Cable | Plastic, PUR |
Weight | 20 g |
Specifications may be subject to change without notice
