Product Model

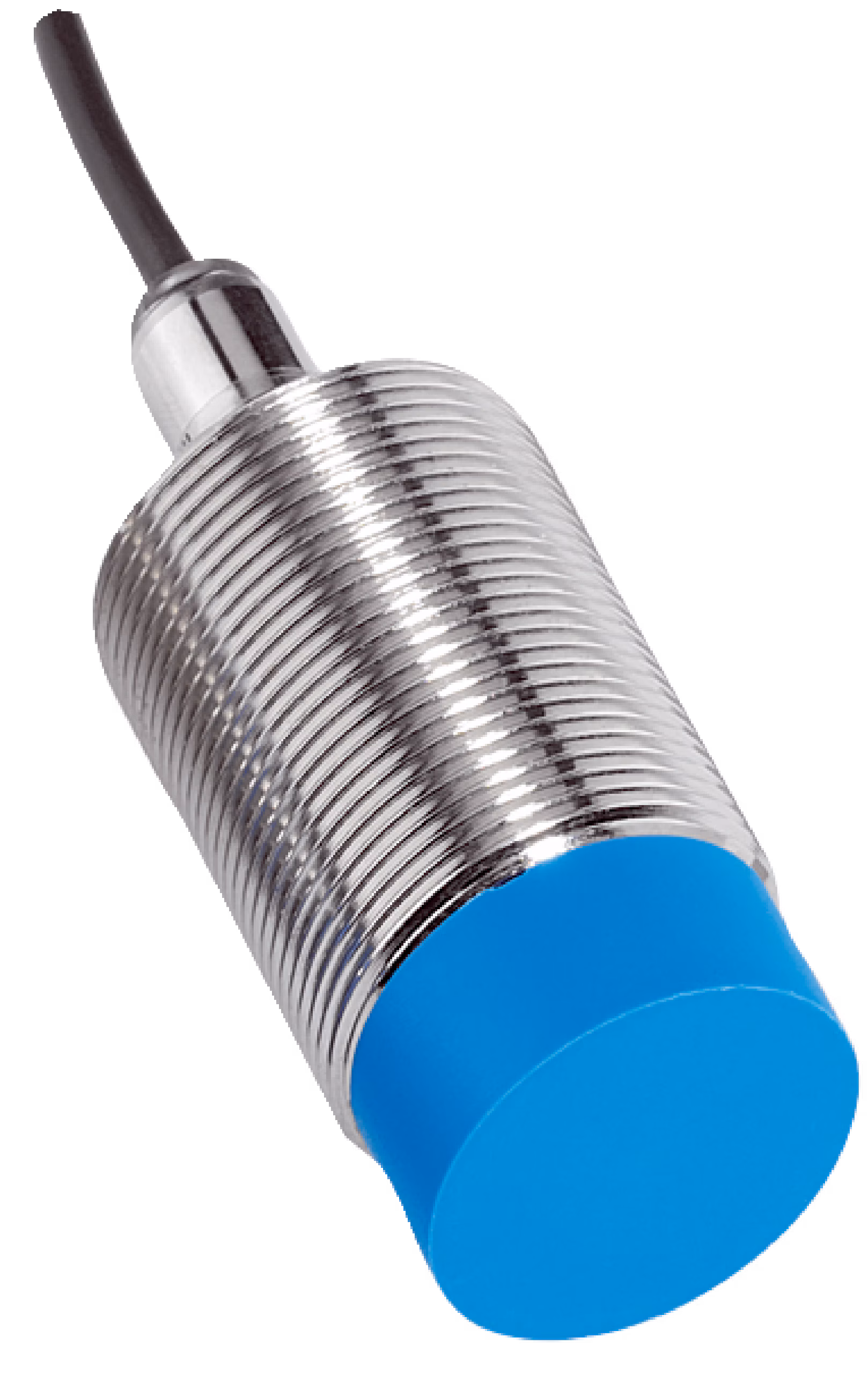

IME30-15NNSZW2S
Selling Points
- 1High Precision Detection: Detects objects with utmost precision, ensuring accurate switching points.
- 2Rugged Design: Constructed with brass or stainless steel housing, providing optimal resistance against oils and cooling lubricants.
- 3Long Service Life: Encapsulated electronics increase shock and vibration resistance, ensuring long-term reliability.
- 4Easy Installation: Quick and easy mounting due to optical adjustment indicator, reducing setup time.
- 5Flexible Communication Options: Compatible with IO-Link for flexible configuration and diagnostics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Housing | Standard design |
Thread size | M30 x 1.5 | Diameter | Ø 30 mm |
Sensing range Sn | 15 mm | Safe sensing range Sa | 12.15 mm |
Installation type | Non-flush | Switching frequency | 500 Hz |
Connection type | Cable, 3-wire, 2 m | Switching output | NPN |
Output function | NO | Electrical wiring | DC 3-wire |
Enclosure rating | IP67 | Items supplied | Mounting nut, brass, nickel-plated (2x) |
Supply voltage | 10 V DC ... 30 V DC | Ripple | ≤ 10 % |
Voltage drop | ≤ 2 V | Time delay before availability | ≤ 125 ms |
Hysteresis | 5 % ... 15 % | Reproducibility | ≤ 2 % |
Temperature drift (of Sr) | ± 10 % | EMC | According to EN 60947-5-2 |
Continuous current Ia | ≤ 200 mA | No load current | ≤ 10 mA |
Cable material | PVC | Conductor size | 0.25 mm² |
Cable diameter | Ø 3.9 mm | Short-circuit protection | ✔ |
Power-up pulse protection | ✔ | Shock and vibration resistance | 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm |
Ambient operating temperature | –25 °C ... +75 °C | Housing material | Brass, nickel-plated |
Sensing face material | Plastic, PA 66 | Housing length | 70 mm |
Thread length | 41 mm | Tightening torque, max. | ≤ 100 Nm |
UL File No. | NRKH.E181493 | Note | The values are reference values which may vary |
St37 steel (Fe) | 1 | Stainless steel (V2A, 304) | Approx. 0.8 |
Aluminum (Al) | Approx. 0.45 | Copper (Cu) | Approx. 0.4 |
Brass (Br) | Approx. 0.4 | Remark | Associated graphic see "Installation" |
A | 30 mm | B | 60 mm |
C | 30 mm | D | 45 mm |
E | 30 mm | F | 120 mm |
Specifications may be subject to change without notice
