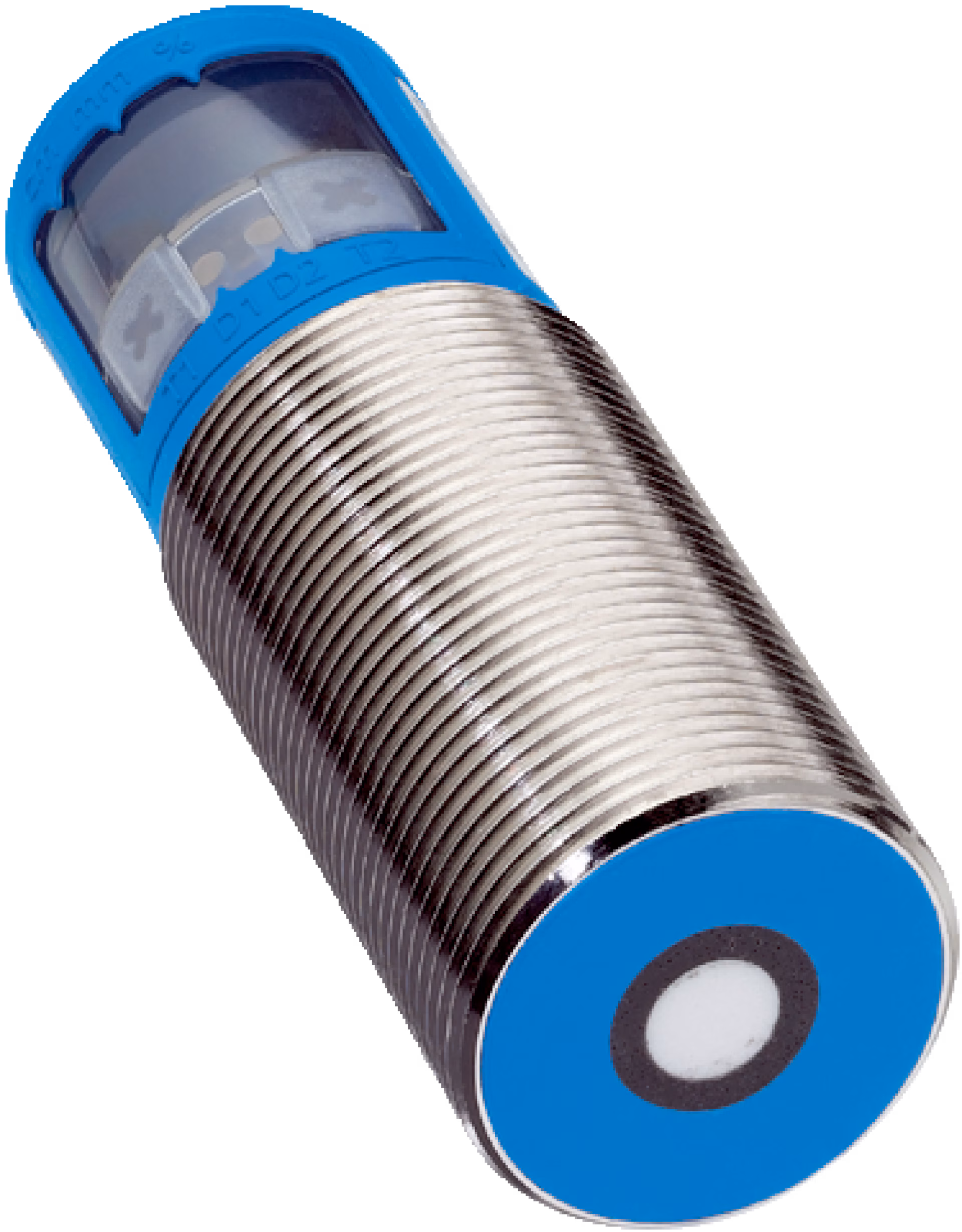

Product Model
UM30-21111B
Selling Points
- 1High measurement accuracy with internal temperature compensation.
- 2Flexible sensing range up to 250 mm with adjustable sensitivity.
- 3Immune to dirt, dust, humidity, and fog for reliable operation.
- 4Versatile interfaces including IO-Link for seamless integration.
- 5Synchronization and multiplex modes prevent mutual interference between sensors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating range, limiting range | 30 mm ... 250 mm, 350 mm | Target | Natural objects |
Resolution | ≥ 0.18 mm | Repeatability | ± 0.15 % |
Measurement accuracy | ± 1 % | Temperature compensation | ✔ |
Response time | 32 ms | Switching frequency | 25 Hz |
Output time | 8 ms | Ultrasonic frequency (typical) | 320 kHz |
Detection area (typical) | See diagrams | Additional function | Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, set levels of digital outputs, invertable digital output, set on delay digital output, synchronization of up to 50 sensors, multiplexing: no cross talk of up to 50 sensors, adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam, Display (can be deactivated), teach-in button(s) (can be deactivated), reset to factory default |
IO-Link_Function | Process data, diagnosis, parameterization, data storage | Digital output_Number | 11) |
Digital output_Type | Push-pull: PNP/NPN | Digital output_Maximum output current IA | ≤ 100 mA |
Multifunctional input (MF) | 1 x MF | Hysteresis | 3 mm |
Supply voltage UB | DC 9 V ... 30 V | Power consumption | ≤ 2.4 W |
Initialization time | < 300 ms | Indication | LED display, 2 x LED |
Enclosure rating | IP65 / IP67 | Protection class | III |
Dimensions (W x H x D) | 30 mm x 30 mm x 84 mm | Design | Cylindrical |
Sending axis | Straight | Housing material | Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
Weight | 150 g | Thread size | M30 x 1.5 |
Connection type | Male connector, M12, 5-pin |
Specifications may be subject to change without notice
