Product Model

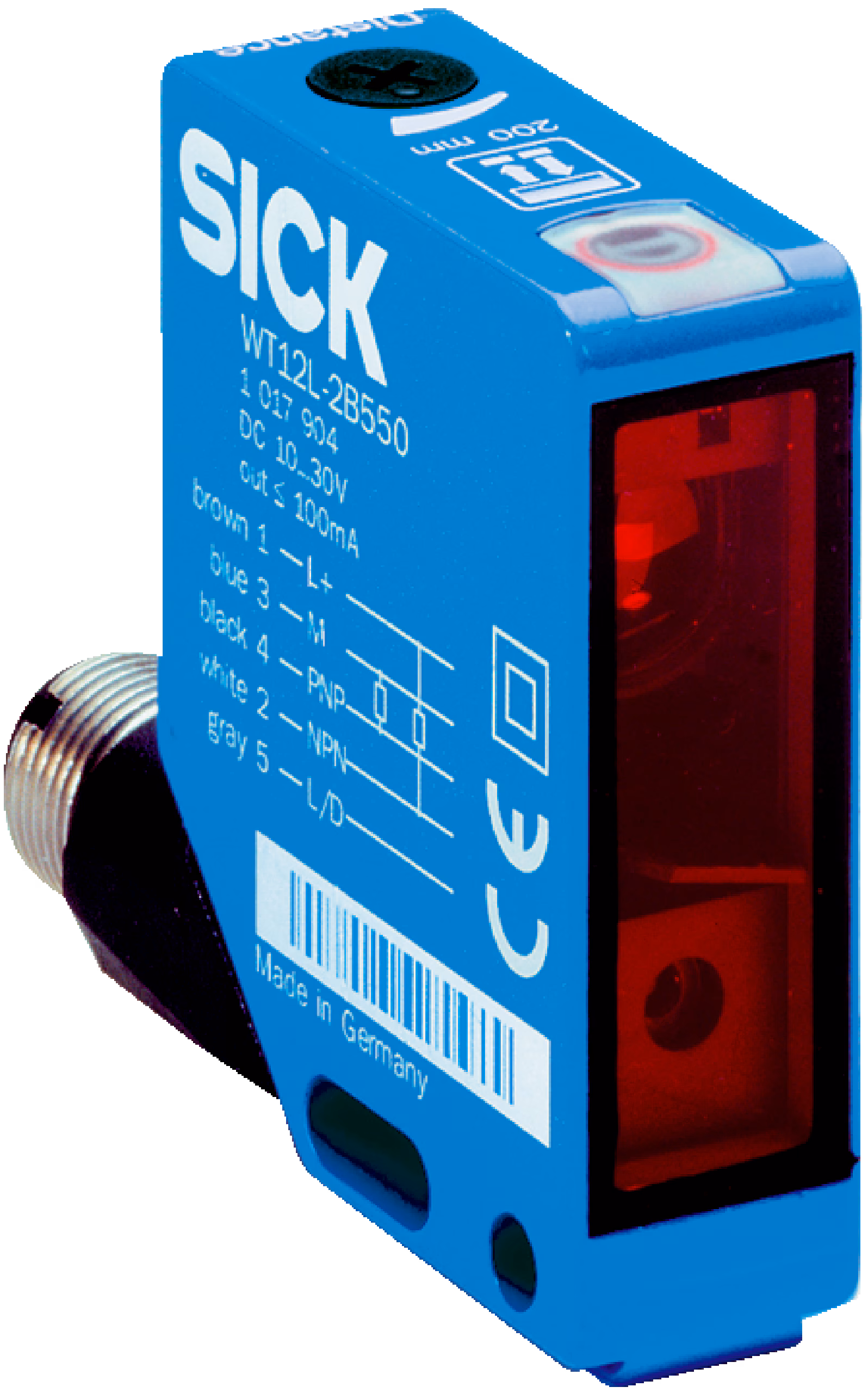

WT12L-2B550A01
Selling Points
- 1Reliable Detection: Accurate presence and position detection with background suppression.
- 2Versatile Sensing Range: Operates from 30 mm to 200 mm, suitable for various industrial applications.
- 3Durable Design: IP67/69K rating ensures the sensor can withstand harsh environments.
- 4Flexible Output Options: Available in PNP and NPN configurations for easy integration.
- 5Easy Adjustment: Includes a potentiometer for precise adjustment of the detection threshold.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Sensing range max. | 30 mm ... 200 mm |
Emitted beam_Light source | Laser2) | Emitted beam_Type of light | Visible red light |
Emitted beam_Light spot size (distance) | Ø 0.2 mm (100 mm) | Focus position | 100 mm |
Key laser figures_Normative reference | EN 60825-1:2014, IEC 60825-1:2007 | Key laser figures_Laser class | 23) |
Key LED figures_Wave length | 650 nm | Adjustment | Potentiometer |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 55 mA | Protection class | II |
Digital output_Type | PNP, NPN4)5) | Digital output_Switching mode | Light switching, Dark switching4)5) |
Housing | Rectangular | Dimensions (W x H x D) | 15 mm x 49 mm x 41.5 mm |
Connection | Male connector M12, 5-pin | Material_Housing | Metal |
Material_Front screen | Plastic, PMMA | Weight | 130 g |
Specifications may be subject to change without notice
