Product Model

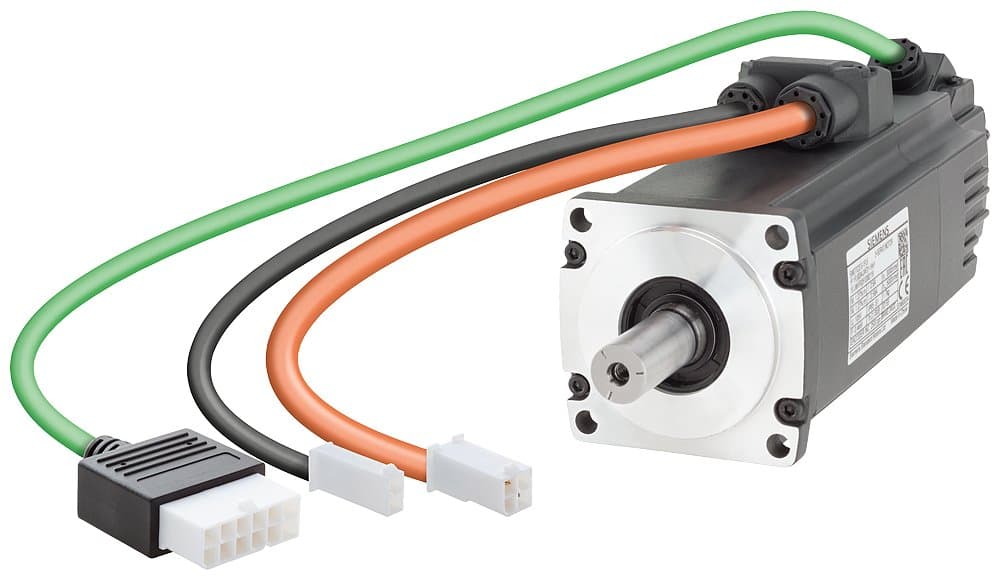

1FL6032-2AF21-1AH1
Selling Points
- 1High Torque Capability: The SIMOTICS S-1FL6 servomotor delivers 300% overload capability for robust performance.
- 2Efficient Operation: Designed for operation without external cooling, the motor dissipates heat through its surface.
- 3Versatile Encoder Options: Choose from incremental or absolute encoders (21-bit single-turn or 20-bit single-turn + 12-bit multi-turn) to suit your application.
- 4Compact Design: Available in a compact shaft height of 30 mm, ideal for space-constrained systems.
- 5Reliable Performance: With a rated power of 0.2 kW and a maximum torque of 1.91 Nm, it ensures reliable operation in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Arrangement of Electrical Connection | Cable Outlet | Certification | CE, EAC |
Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
Environmental Temperature / During Operation / Maximum Value | 40 °C | Environmental Temperature / During Operation / Minimum Value | 0 °C |
Vibration Level Rating | Level A | Net Weight / Motor with Brake | 1.50 kg |
Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85 K | 0.48 N.m/A |
Consumption Current / Maximum Value | 4.20 A | Consumption Current / Winding Overheating 85 K / Value | 1.40 A |
Output Mechanical Power [hp] | 0.27 hp | Output Mechanical Power / Winding Overheating 85 K / Value | 0.20 kW |
Shaft Height / Rated Value / Remarks | 30 | Torque / Maximum Value | 1.91 N.m |
Shaft End Model / Drive Side | Smooth Shaft | Speed / Value | 3000 1/min |
Parking Brake | Yes | Motor Type | Low Inertia |
Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 1FL6032-2AF21-1AH1 |
Specifications may be subject to change without notice
