SiemensSIMOTICS Inverter-Compatible Motors
Product Model

1FL6032-2AF21-1MG1

Manufacturer

Siemens

Category

SIMOTICS Inverter-Compatible Motors

Product ID

119670

In Stock
Last updated: 2025/4/28
View Specifications

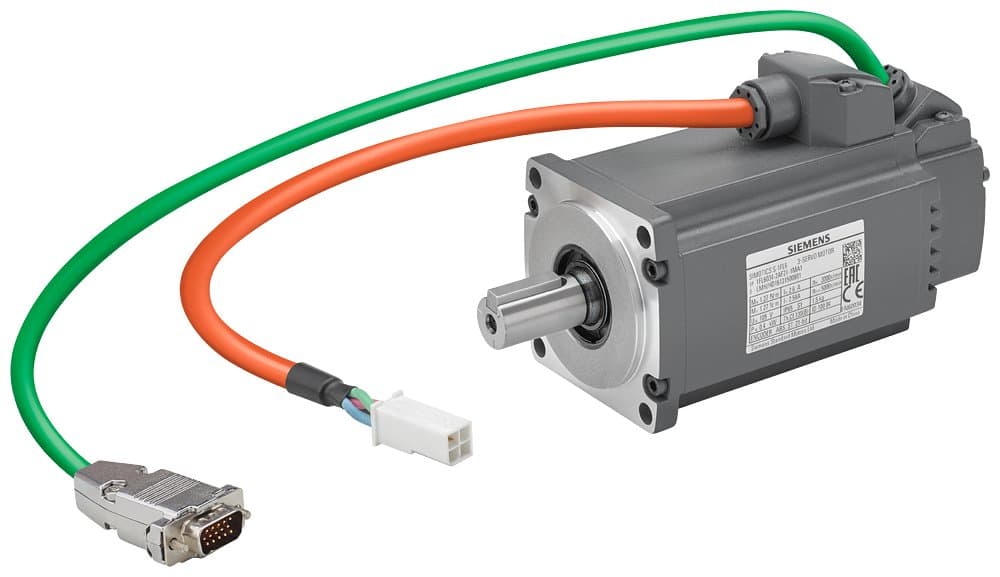

Siemens 1FL6032-2AF21-1MG1

Selling Points

  • 1High torque output with 0.64 Nm rated torque.
  • 2Low inertia design for fast response times.
  • 3Compatible with SINAMICS V90 servo drives for enhanced functionality.
  • 4300% overload capability for robust operation.
  • 5Permanent-magnet synchronous motor design for efficient heat dissipation.
Product Details
1FL6032-2AF21-1MG1
Siemens

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Arrangement of Electrical Connection
Cable Outlet
Certifications
CE, EAC
Motor Specifications
Permanent Magnet Synchronous Motor
Cooling Method
Self-cooled
Relative Humidity / During Operation / Maximum / Remarks
Maximum RH (no condensation at 30 °C)
Relative Humidity / During Operation / Maximum
90%
Ambient Temperature / During Operation / Maximum
40 °C
Ambient Temperature / During Operation / Minimum
0 °C
Vibration Level Rating
Level A
Net Weight / Motor
1.00 kg
Structure Form of Rotating Electrical Machine / Code Conformity I
IM B5 (IM V1, IM V3)
Protection Class IP
IP65
Thermal Class
B (130 °C)
Torque Constant / Winding Overheating 85 K
0.48 N.m/A
Consumption Current / Maximum
4.20 A
Consumption Current / Winding Overheating 85 K / Rating
1.40 A
Output Mechanical Power [hp]
0.27 hp
Output Mechanical Power / Winding Overheating 85 K / Rating
0.20 kW
Shaft Height / Rating / Remarks
30
Torque / Maximum
1.91 N.m
Shaft End Model / Drive Side
Smooth Shaft
Speed / Rating
3000 1/min
Parking Brake
No
Motor Type
Low Inertia
Product Type
S-1FL6 Servo Motor
Lifecycle
Delivery Release (PM300)
Country of Origin
China
ECCN
N
AL
N
Model Number
1FL6032-2AF21-1MG1

Specifications may be subject to change without notice
