Product Model

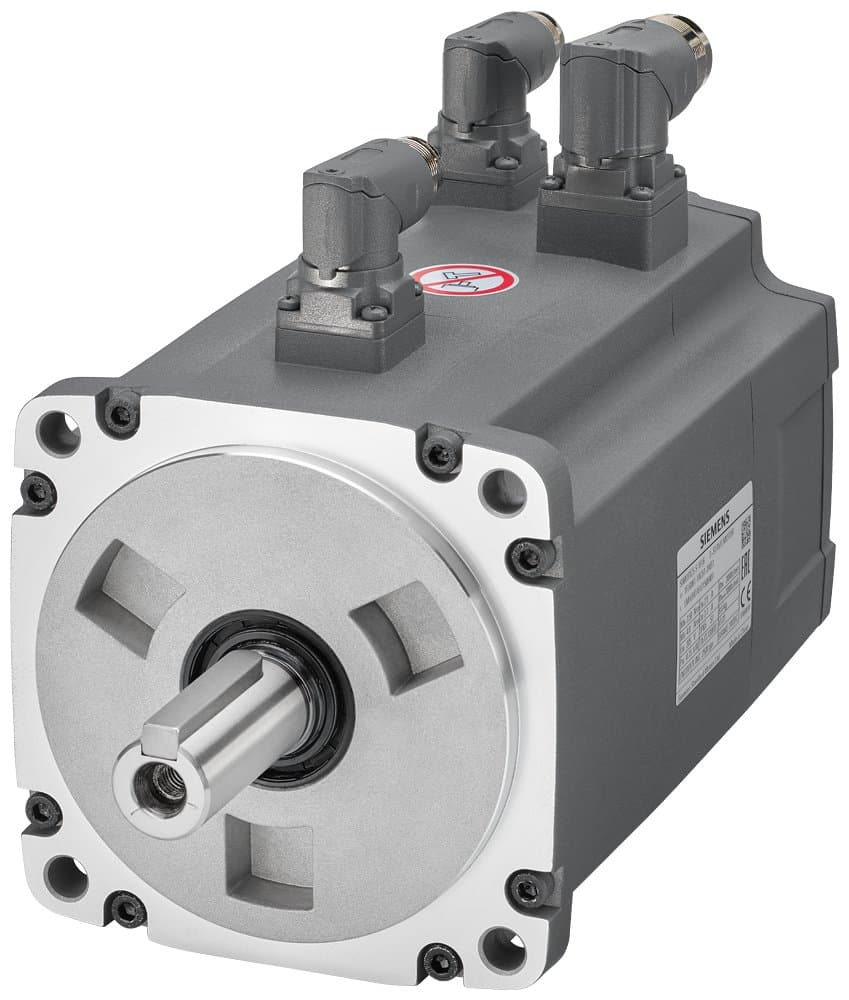

1FL6066-1AC61-2AA1
Selling Points
- 1Ideal for demanding applications requiring precise motion sequences.
- 2Robust and reliable with standard IP65 protection against dust and water.
- 3Equipped with a 2500 increments/rev encoder for precise speed control.
- 4Suitable for various mounting options, including angle plug and feather key.
- 5Seamless integration with SINAMICS V90 converters for enhanced performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Arrangement of Electrical Connection | Bent connector (rotatable) for any output direction | Certification | CE, EAC |
Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30°C) | Relative Humidity / During Operation / Maximum Value | 90% |
Ambient Temperature / During Operation / Maximum Value | 40°C | Ambient Temperature / During Operation / Minimum Value | 0°C |
Vibration Level Rating | Level A | Net Weight / Motor | 11.10kg |
Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Rating IP | IP65 |
Thermal Class | B (130°C) | Torque Constant / Winding Overheating 85K | 1.70 N.m/A |
Consumption Current / Maximum Value | 15.90A | Consumption Current / Winding Overheating 85K / Rated Value | 5.30A |
Output Mechanical Power [hp] | 2.38 hp | Output Mechanical Power / Winding Overheating 85K / Rated Value | 1.75kW |
Shaft Height / Rated Value / Remarks | 65 | Torque / Maximum Value | 25.10 N.m |
Shaft End Model / Drive Side | Keyway Shaft | Speed / Rated Value | 2000 1/min |
Parking Brake | No | Motor Type | High Inertia |
Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 1FL6066-1AC61-2AA1 |
Specifications may be subject to change without notice
