Product Model

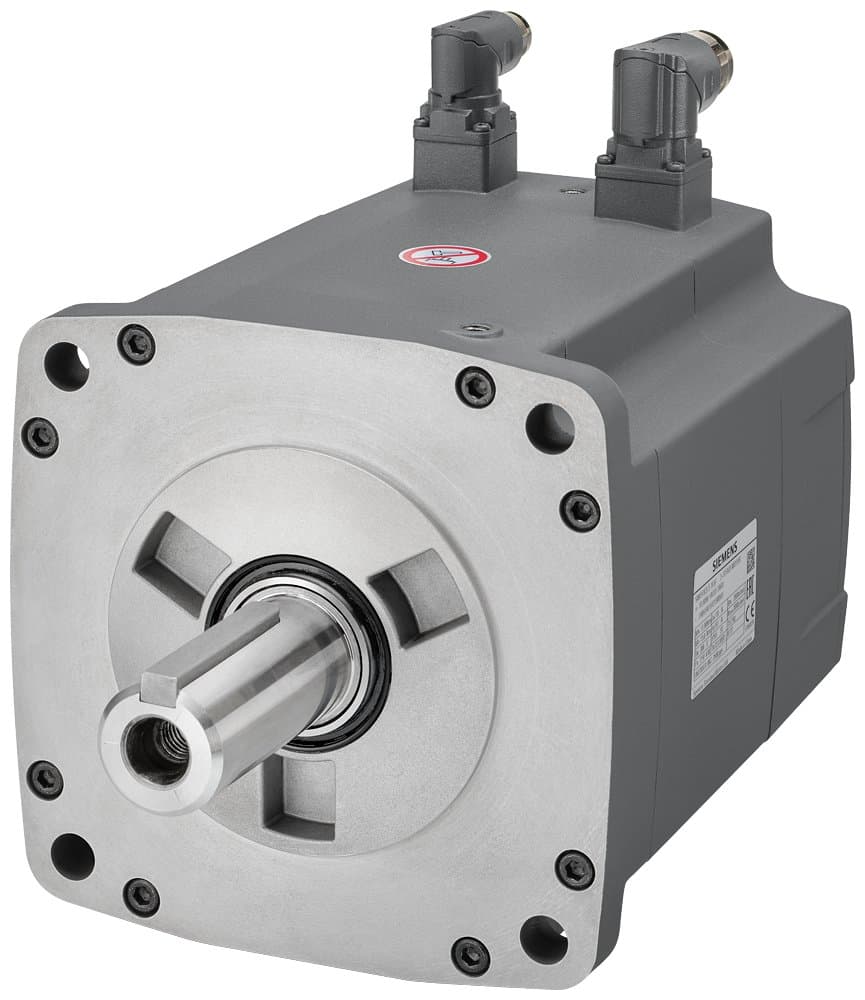

1FL6090-1AC61-2AA1
Selling Points
- 1High Operating Voltage: 3AC 400 V for efficient operation.
- 2Powerful Performance: Pn=2.5 kW for robust motor functionality.
- 3High Speed Capability: Nn=2000 rpm for fast and precise movement.
- 4Torque Control: M0=15 Nm and MN=11.9 Nm for precise torque management.
- 5Advanced Encoder: Incremental encoder with 2500 increments per revolution for precise positioning.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Arrangement of Electrical Connection | Bent connector (rotatable) for any output direction | Certifications | CE, EAC |
Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
Ambient Temperature / During Operation / Maximum Value | 40 °C | Ambient Temperature / During Operation / Minimum Value | 0 °C |
Vibration Level Rating | Level A | Net Weight / Motor | 15.40 kg |
Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Rating IP | IP65 |
Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85K | 1.60 N.m/A |
Consumption Current / Maximum Value | 23.40 A | Consumption Current / Winding Overheating 85K / Rated Value | 7.80 A |
Mechanical Output Power [hp] | 3.40 hp | Mechanical Output Power / Winding Overheating 85K / Rated Value | 2.50 kW |
Shaft Height / Rated Value / Remarks | 90 | Torque / Maximum Value | 35.70 N.m |
Shaft End Model / Drive Side | Keyway Shaft | Speed / Rated Value | 2000 1/min |
Parking Brake | No | Motor Type | High Inertia |
Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 1FL6090-1AC61-2AA1 |
Specifications may be subject to change without notice
