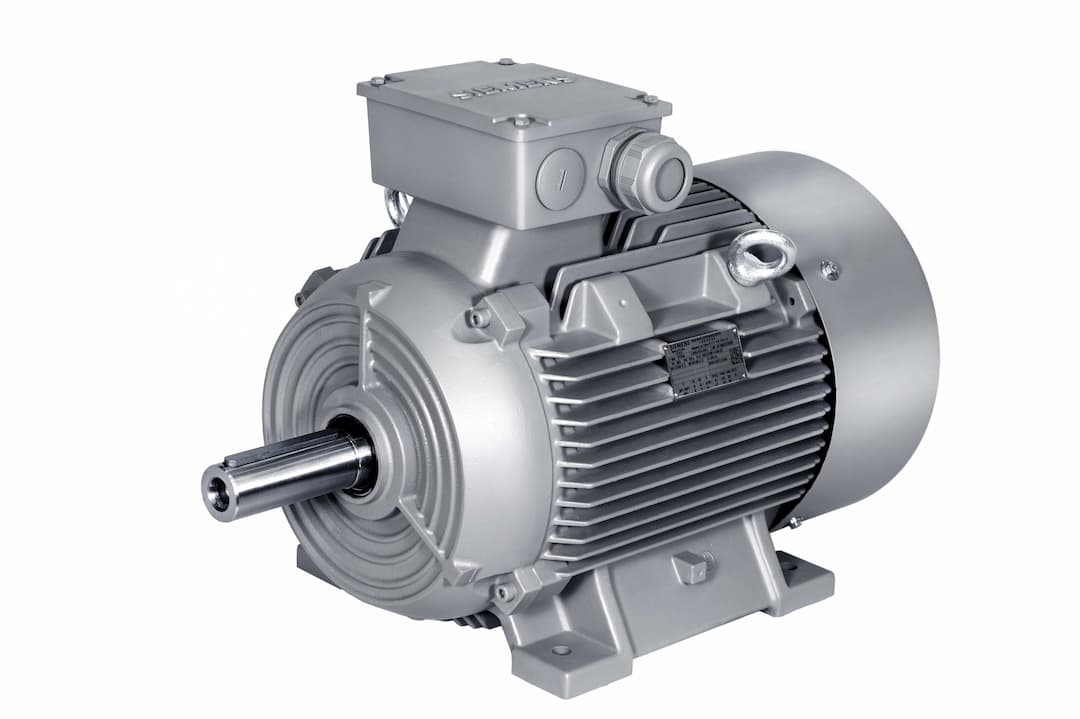

Product Model
1LE0003-0EC42-1AC4
Selling Points
- 1Designed with IE3 Premium Efficiency, reducing energy consumption and increasing productivity.
- 2Built with cast iron housing and IP55 environmental protection for durability in harsh conditions.
- 3Available in 2, 4, 6, and 8 poles, suitable for various industrial applications.
- 4Compatible with 220V/380V/400V/415V/440V/460V/480V/660Volts, ensuring flexibility in different power systems.
- 5Optimized for operation on frequency converters, enhancing efficiency and stability in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Unit Weight | 28kg | Operating Ambient Temperature | -20℃ ~ 40℃ |
Operating Altitude | <1000m | Protection Rating | IP55 |
Rated Torque | 11.1Nm | Rated Current | 3A |
Mounting Method | IM B3 | Motor Shaft Height | FS90L |
Rated Speed | 945rpm | Synchronous Speed | 1000rpm |
Motor Poles | 6 pole | Rated Power | 1.1KW |
Power Supply Phases | 3AC | Rated Frequency | 50Hz |
Rated Voltage | 220VD/380VY | Product Type | SIMOTICS SD Low Voltage Motor |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 1LE0003-0EC42-1AC4 |
Specifications may be subject to change without notice
