Product Model
3KC4438-0CA21-0AA3
Selling Points
- 1Remotely operated for convenient control.
- 24-pole design for robust electrical connections.
- 3Rated for 250 A Iu and 415 V Ue.
- 4Motorized operating mechanism for smooth switching.
- 5Compact design with easy wiring and mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

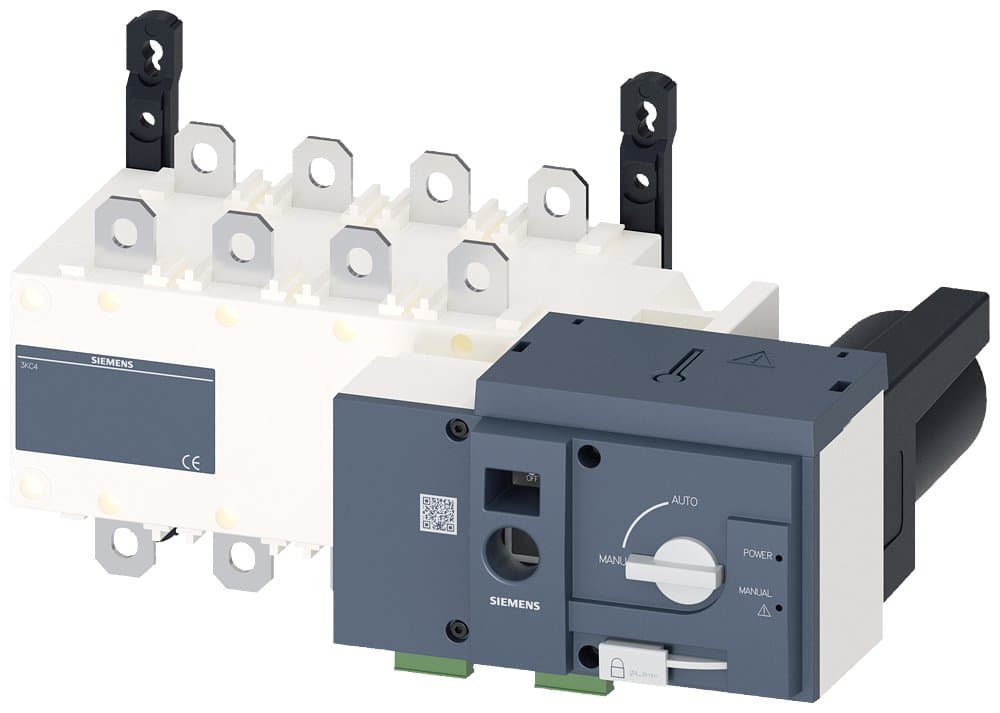

Description | 3KC4 PC-250A-4P Without Controller; PC-level; Rated Current 250A; 4P Remote Control Transfer Switch; Equipped with Motor Drive Mechanism and Additional Front Operation Mechanism
Standard Configuration: One Set of Position Indicating Auxiliary Contacts | Impulse Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [Cage Motor and Resistive Load for AC] | Other | Remote Control Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 250 |
Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC4438-0CA21-0AA3 |
Specifications may be subject to change without notice
