Product Model

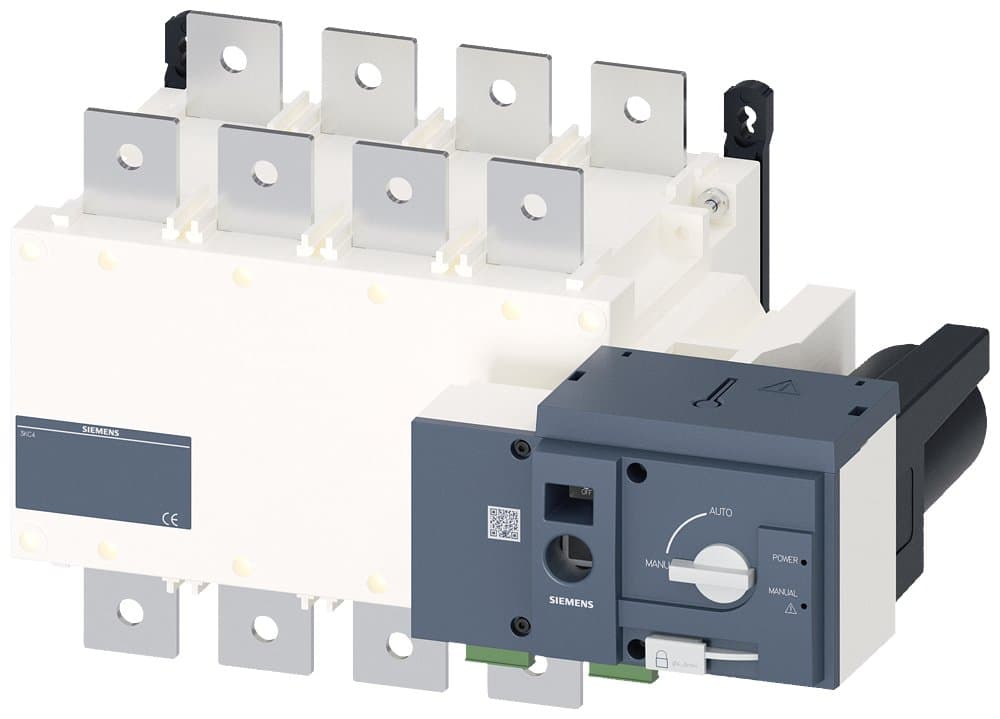

3KC4446-0EA21-0AA3
Selling Points
- 1Remotely operated transfer switching equipment with high current capacity (Iu: 630 A).
- 2Compatible with 4-pole configuration and AC voltage (Ue AC: 415 V).
- 3Features a motorized operating mechanism and long handle for easy operation.
- 4Includes busbar connection for secure and efficient power distribution.
- 5Compliant with RoHS directive since 2015, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 3KC4 PC-630A-4P Without Controller; PC-level; Rated Current 630A; 4P Remote Control Transfer Switch; Equipped with Motor Drive Mechanism, Additional Front Operation Mechanism, Standard Position Indicating Auxiliary Contacts Set | Impact Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Remote Control Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 630 |
Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC4446-0EA21-0AA3 |
Specifications may be subject to change without notice
