Product Model

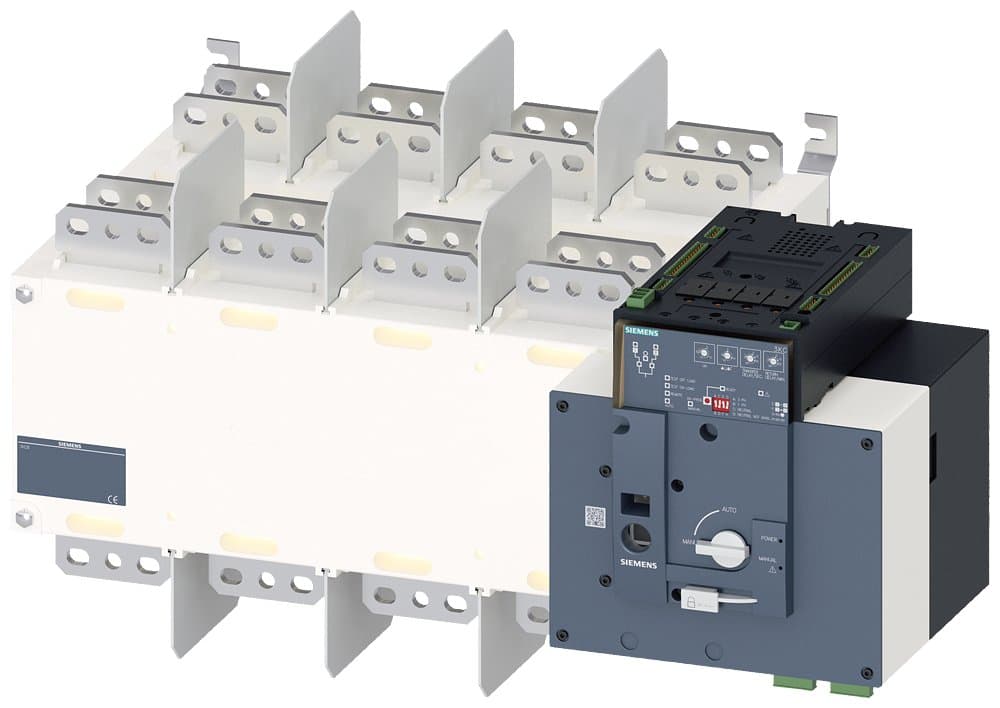

3KC8458-0JA22-0GA3
Selling Points
- 1Automatically switches between power sources for continuous supply.
- 24-pole design with high current ratings up to 2500 A.
- 3Screw mounting for easy installation.
- 4Ideal for applications requiring high reliability and safety.
- 5Compliant with IEC 60947-6-1 and IEC 60947-3 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 3KC8 PC-2500A-4P Basic Type; PC-level; Rated Current 2500A; 4P Automatic Transfer Switch; Equipped with Motor Drive Mechanism and Integrated Controller, Additional Front Operation Mechanism, Standard Configuration of a Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Automatic Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 2500 |
Specification | 3KC8 [250-3200A] | Control Type | Basic Type |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC8458-0JA22-0GA3 |
Specifications may be subject to change without notice
