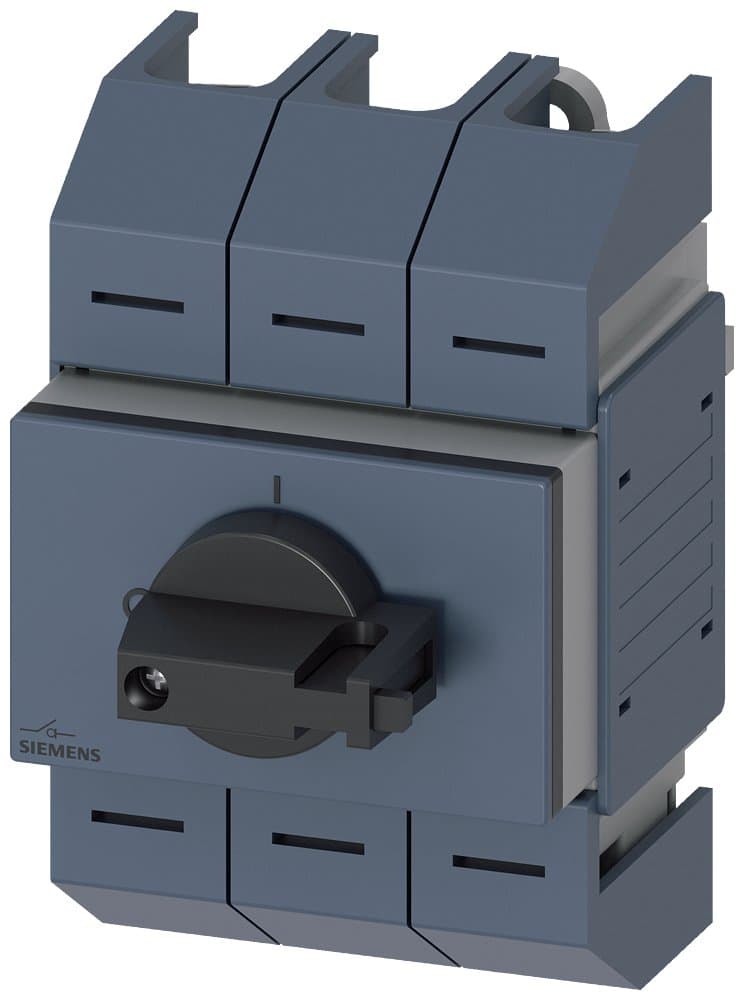

Product Model
3KD0432-2LG20-3
Selling Points
- 1Reliable protection from electrical accidents.
- 2Rugged technology for high system availability.
- 3Wide range of applications with variable connection and operating mechanism types.
- 4Simple retrofitting of additional functions with an extensive range of accessories.
- 5Quick installation on the standard mounting rail with frame sizes up to 200 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 02; Rated Current 80A; 3P; Kit type, front operation, box terminal, with direct operating mechanism gray handle |
Mounting Type | Surface Mount | Terminal Type | Box Terminal |
Number of Poles | 3P | In(A) | 80 |
Specification | 3KD_Specification 02 [63-125A] | Switch Type | Kit type, front operation, box terminal, with direct operating mechanism gray handle |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3KD0432-2LG20-3 |
Specifications may be subject to change without notice
