Product Model

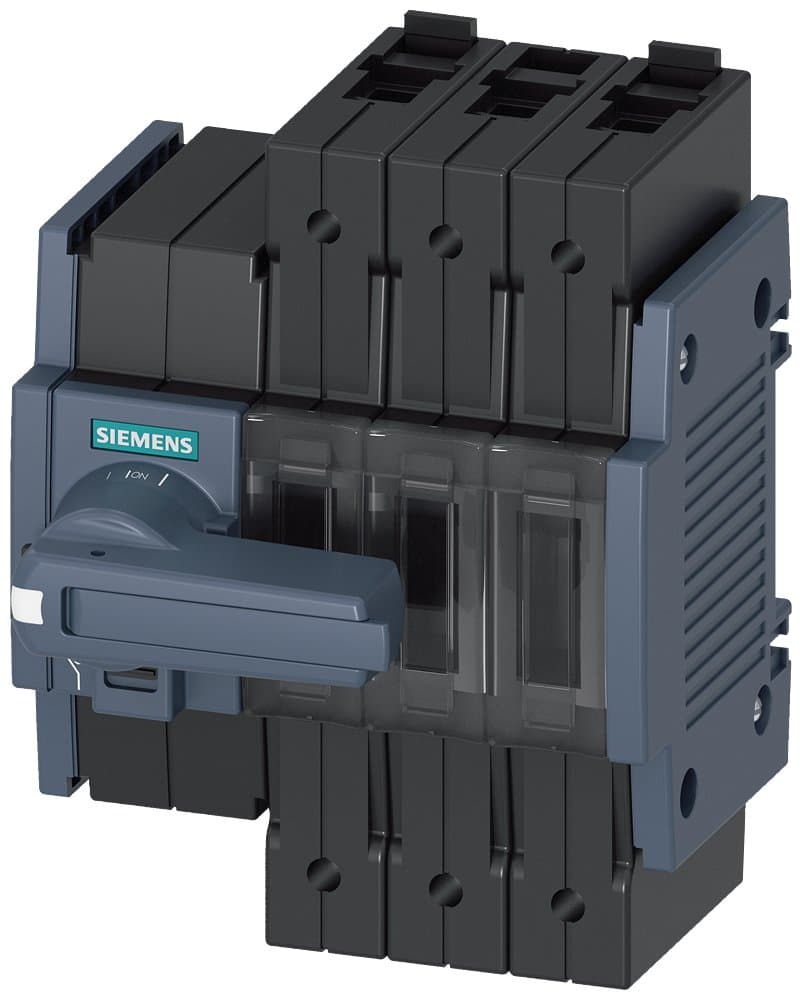

3KD1632-2ME10-0
Selling Points
- 1Reliable protection from electrical accidents with a safety isolating function.
- 2Rugged technology for high system availability in industries, infrastructure, and buildings.
- 3Wide range of applications with variable connection and operating mechanism types.
- 4Simple retrofitting of additional functions with an extensive range of accessories.
- 5Quick installation on the standard mounting rail with frame sizes up to 200 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated current 16A, 3P, kit type, front operation, with direct front operation mechanism, grey handle, operating mechanism on the left side of the switch, surface mount, box terminal, |
Mounting Type | Surface Mount | Terminal Type | Box Terminal |
Number of Poles | 3P | In(A) | 16 |
Specification | 3KD_Specification 1 [16-100A] | Switch Type | Kit type, front operation, with direct front operation mechanism, grey handle, operating mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD1632-2ME10-0 |
Specifications may be subject to change without notice
