Product Model

3KD1634-2ME40-0

In Stock
Last updated: 2025/4/29

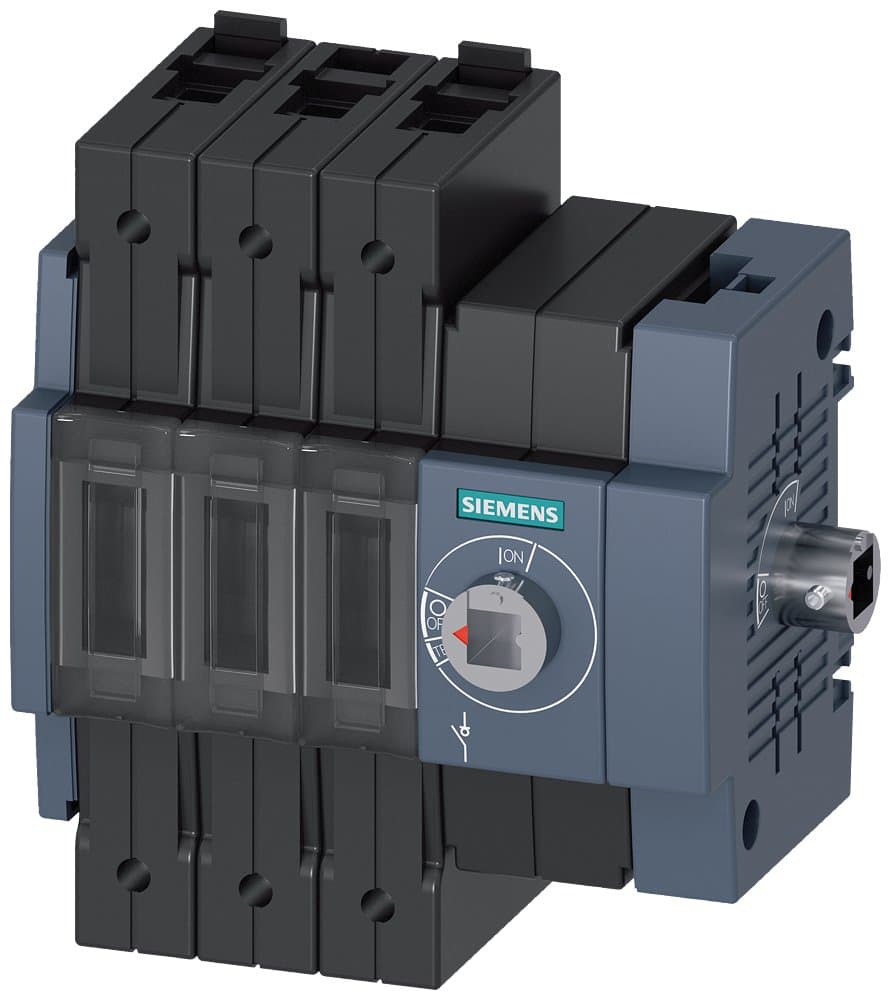

Siemens 3KD1634-2ME40-0

Selling Points

  • 1High Current Rating: Handles up to 16A for reliable electrical protection.
  • 2Compact Design: Size 1, perfect for space-constrained industrial settings.
  • 33-Pole Configuration: Suitable for multiple circuit applications.
  • 4Lateral Operating Mechanism: Easy access and operation from the side.
  • 5Basic Unit Without Handle: Simplified design for enhanced usability and maintenance.
Product Details
3KD1634-2ME40-0
Siemens

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
DC Insulation Voltage (V)
220VDC/440VDC/1000VDC
AC Rated Voltage (V)
690
Insulation Voltage (V)
1000
Description
3KD_Specification1; Rated Current 16A; 3P; Basic unit without handle, side operation mechanism on the right side of the switch; Surface mounting; Box terminal
Mounting Type
Surface Mounting
Terminal Type
Box Terminal
Number of Poles
3P
In(A)
16
Specification
3KD_Specification1 [16-100A]
Switch Type
Basic unit without handle, side operation mechanism on the right side of the switch
Lifecycle
Delivery Release (PM300)
Country of Origin
China
ECCN
N
AL
N
Model
3KD1634-2ME40-0

Specifications may be subject to change without notice
