Product Model

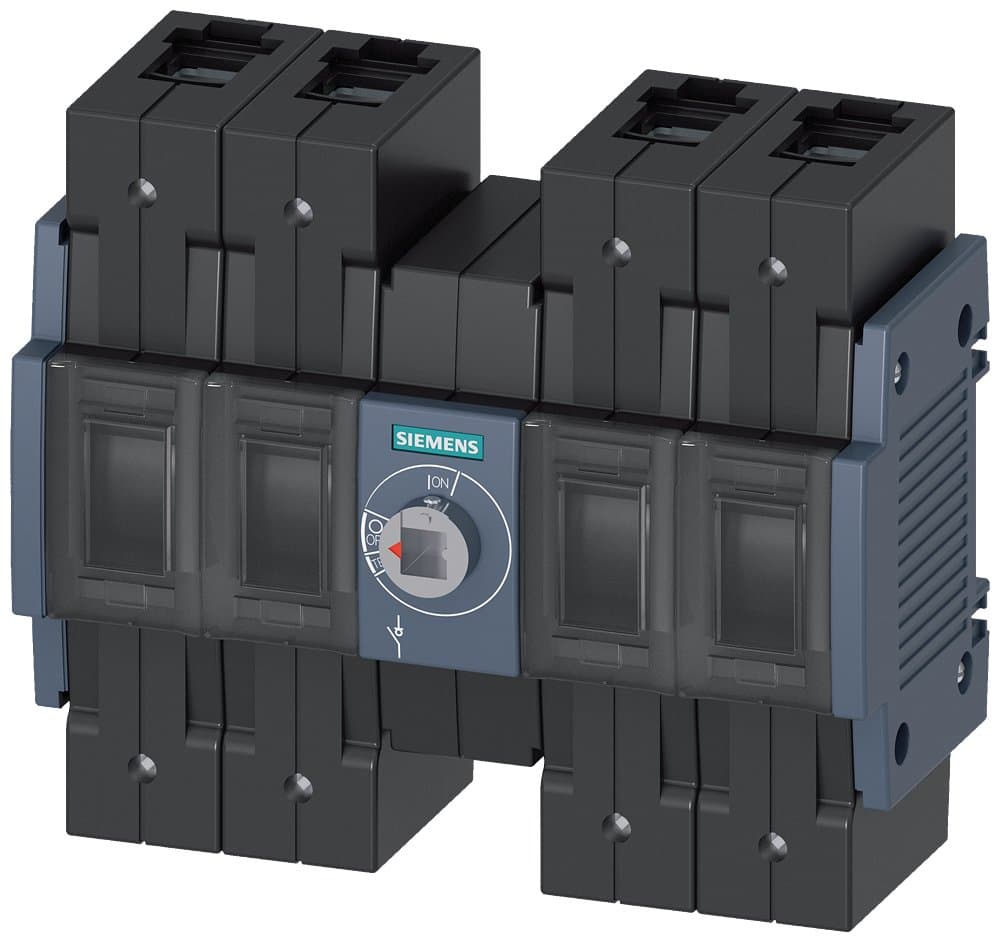

3KD2840-2NE20-0
Selling Points
- 1High Current Capacity: Handles up to 80A with reliable performance.
- 2Robust Design: Features a 4-pole front operating mechanism for secure operation.
- 3Long Service Life: Offers 15,000 mechanical operating cycles and 1,500 electrical cycles.
- 4Versatile Connectivity: Compatible with various conductor cross-sections, including copper busbars and solid conductors.
- 5Comprehensive Certifications: Meets international standards with certifications like IP20 protection class and compliance with RoHS directive.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 80A, 4P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, box terminal |
Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
Number of Poles | 4P | In(A) | 80 |
Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD2840-2NE20-0 |
Specifications may be subject to change without notice
