Product Model

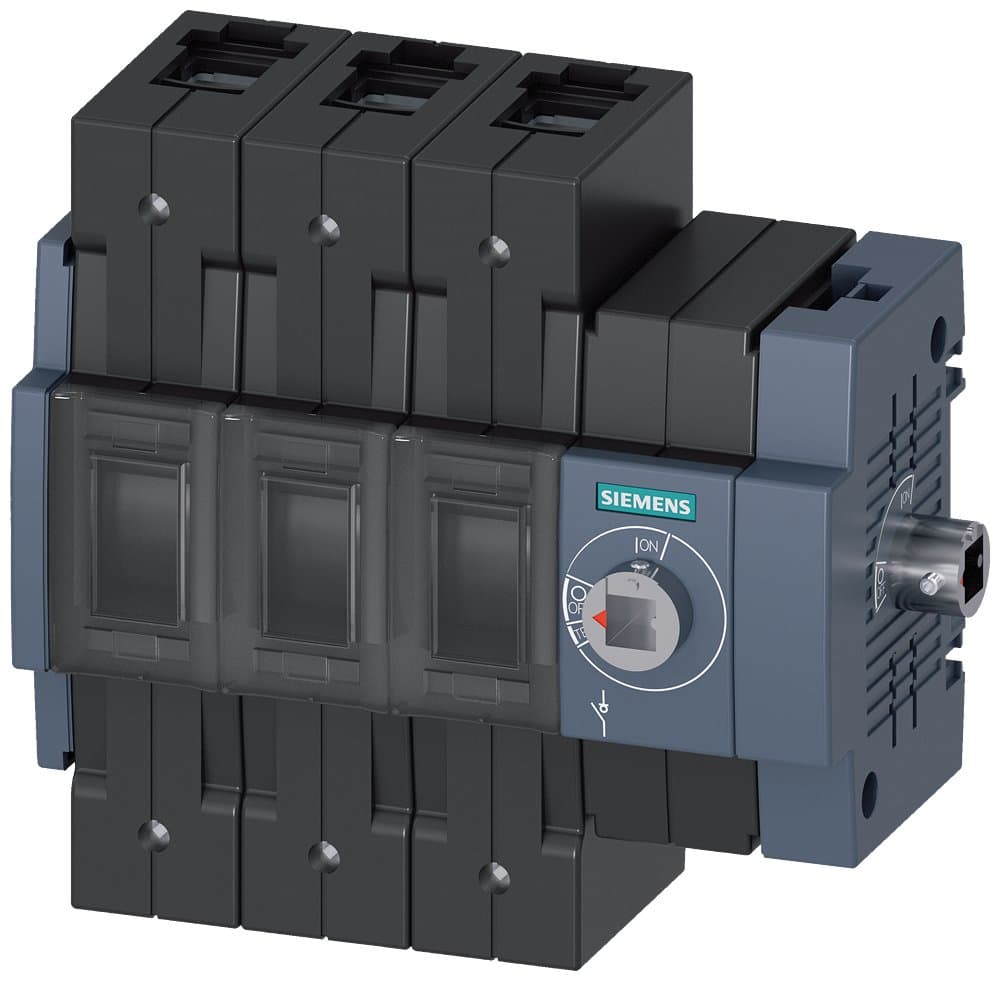

3KD3034-2NE40-0
Selling Points
- 1High-Voltage Capability: Handles up to 690V AC.
- 2100A Current Rating: Suitable for demanding electrical installations.
- 33-Pole Lateral Operating Mechanism: Easy and safe operation with a lateral mechanism.
- 4Fuseless Design: No need for fuses, ensuring reliability and efficiency.
- 5IP65 Protection: Provides maximum achievable IP65 protection against dust and water ingress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 100A; 3P; Basic unit without handle, side operation mechanism on the right side of the switch; Surface mount; Box terminal |
Mounting Type | Surface Mount | Terminal Type | Box Terminal |
Number of Poles | 3P | In(A) | 100 |
Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD3034-2NE40-0 |
Specifications may be subject to change without notice
