Product Model

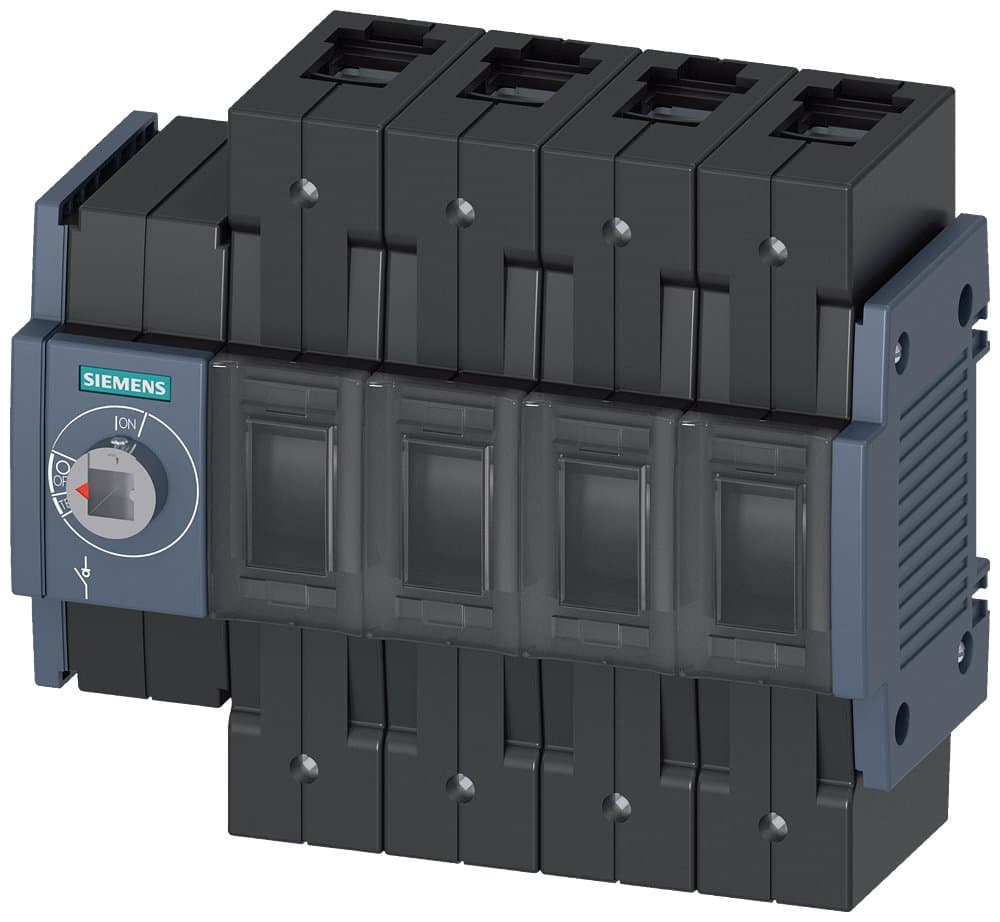

3KD3040-2NE10-0
Selling Points
- 1Protects users from electric shock with permanent switch-on and switch-off under load.
- 2Available for floor mounting, standard rail mounting, and front mounting in panel doors.
- 3Supports rated currents up to 2000 A, making it suitable for heavy-duty applications.
- 4Built with high-quality materials for long-lasting performance and reliability.
- 5Meets IEC 60947-3 and UL 508 standards for added assurance in electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 100A, 4P, basic unit without handle, front operation mechanism on the left side of the switch, surface mounting, box terminal, |
Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
Number of Poles | 4P | In(A) | 100 |
Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD3040-2NE10-0 |
Specifications may be subject to change without notice
