Product Model

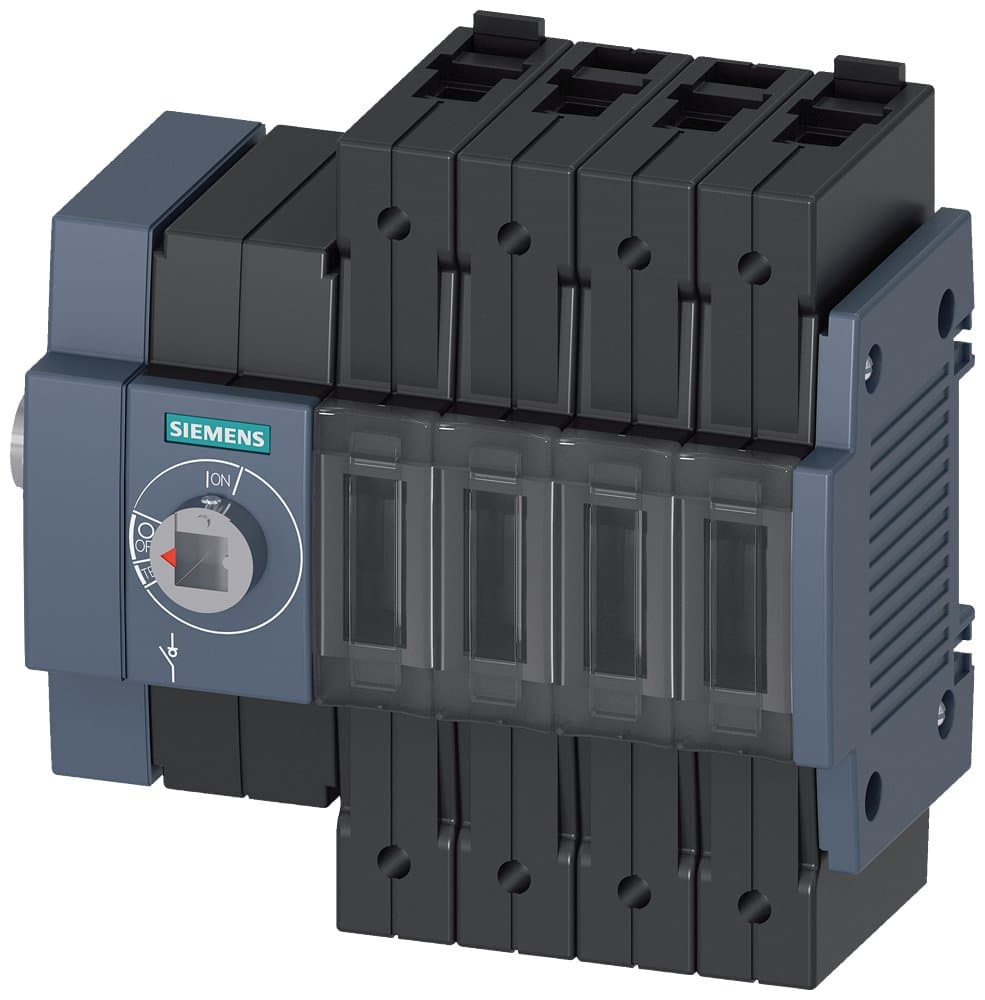

3KD3044-2ME10-0
Selling Points
- 1High Current Capacity: Handles up to 100 A with a short-circuit current making capacity of 7 kA.
- 2Compact Design: Suitable for space-limited applications with a compact size of 119 mm x 121.3 mm x 69.5 mm.
- 3Reliable Operation: Offers a mechanical service life of 15,000 operating cycles and electrical endurance of 6,000 cycles at AC-23 A.
- 4Versatile Mounting Options: Compatible with screw fixing, standard rail mounting, and front mounting via center hole arrangement.
- 5Enhanced Safety Features: Meets overvoltage category III and has an insulation voltage of 1,000 V with surge voltage resistance rated at 8 kV.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated Current 100A; 4P; Basic unit without handle, side operation mechanism on the left side of the switch; Box Terminal |
Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
Number of Poles | 4P | In(A) | 100 |
Specification | 3KD_Specification 1 [16-100A] | Switch Type | Basic unit without handle, side operation mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD3044-2ME10-0 |
Specifications may be subject to change without notice
