Product Model

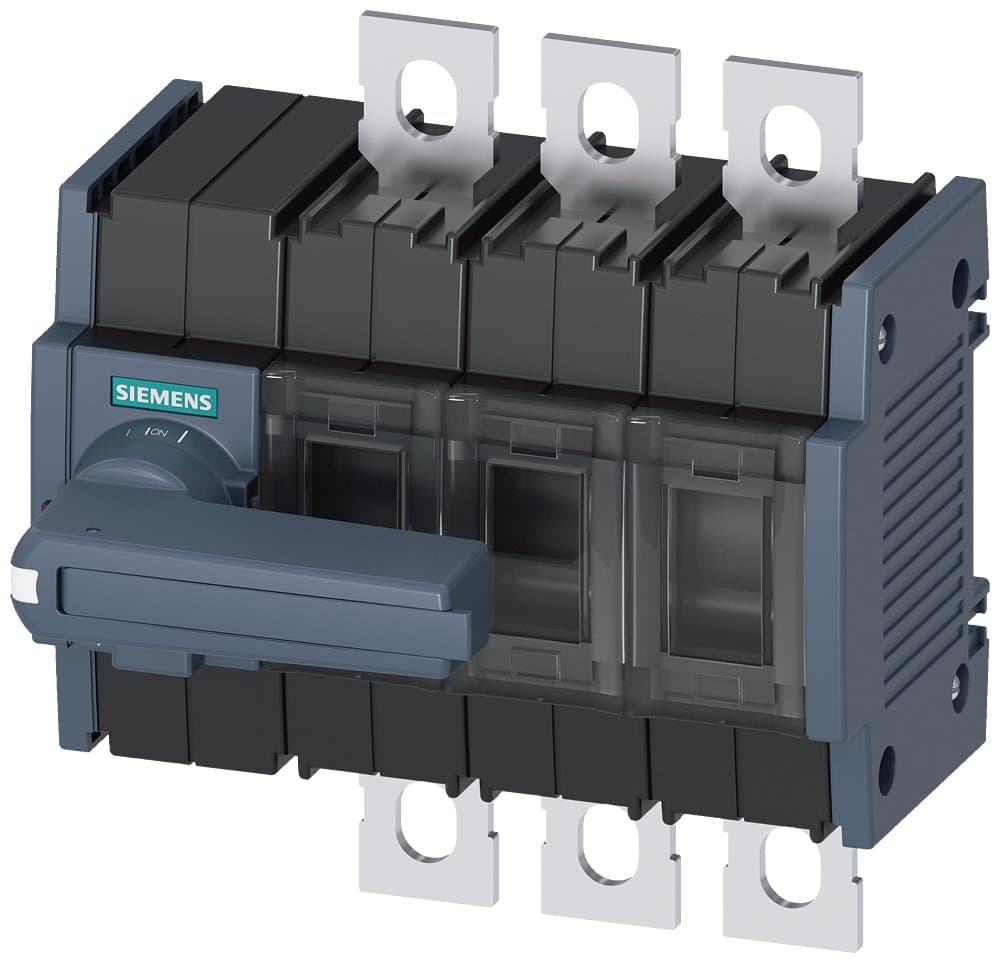

3KD3232-0NE10-0
Selling Points
- 1Designed for reliable operation in demanding electrical environments.
- 2Protects against electric shock with permanent switch-on and switch-off under load.
- 3Suitable for floor mounting, distribution board mounting, and front mounting via center hole.
- 4Compact size allows for use in space-limited areas.
- 5Part of a coordinated range of accessories for greater functionality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 125A, 3P, kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism located on the left side of the switch, surface mount, flat connection |
Mounting Type | Surface Mount | Terminal Type | Flat Connection |
Number of Poles | 3P | In(A) | 125 |
Specification | 3KD Specification 2 [80-125A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism located on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD3232-0NE10-0 |
Specifications may be subject to change without notice
