Product Model

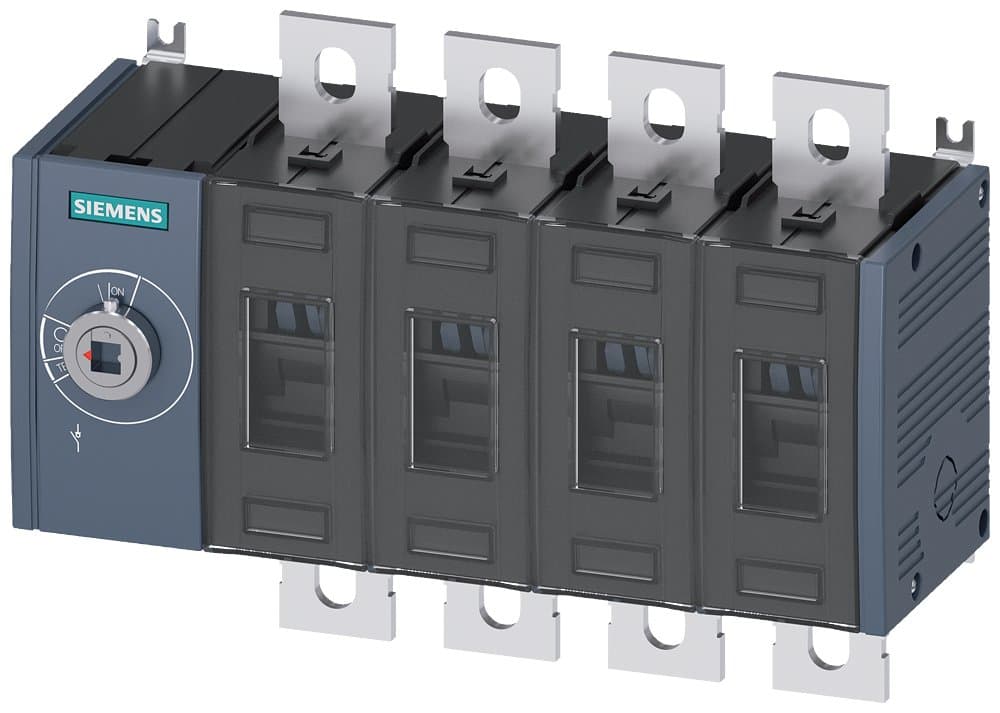

3KD3640-0PE10-0
Selling Points
- 1High current capacity up to 200A.
- 2Front operating mechanism for easy operation.
- 34-pole design for comprehensive control.
- 4Insulation voltage of 1000V for safety.
- 5Surge voltage resistance up to 12kV for reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated Current 200A, 4P, Basic Unit, No Handle, Front Operation Mechanism on the Left Side of the Switch, Surface Mount, Flat Connection, |
Mounting Type | Surface Mount | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 200 |
Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic Unit, No Handle, Front Operation Mechanism on the Left Side of the Switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3KD3640-0PE10-0 |
Specifications may be subject to change without notice
