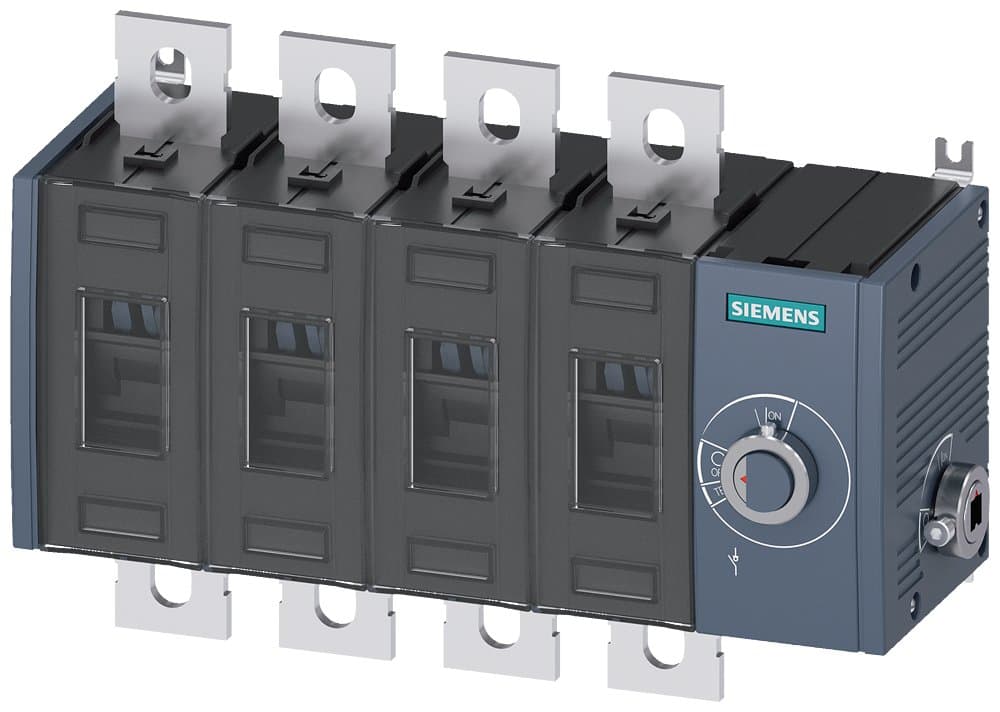

Product Model
3KD3644-0PE40-0
Selling Points
- 1High Power Rating: 200A maximum current.
- 2Reliable Design: Robust construction for long-lasting performance.
- 3Versatile Application: Suitable for various high-power applications.
- 4Easy Operation: Side operating mechanism for convenient use.
- 5Durable Build: Basic unit without handle, ensuring minimal wear and tear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated current 200A, 4P, basic unit without handle, side operation mechanism on the right side of the switch, surface mount, flat connection, |
Mounting Type | Surface Mount | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 200 |
Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3KD3644-0PE40-0 |
Specifications may be subject to change without notice
