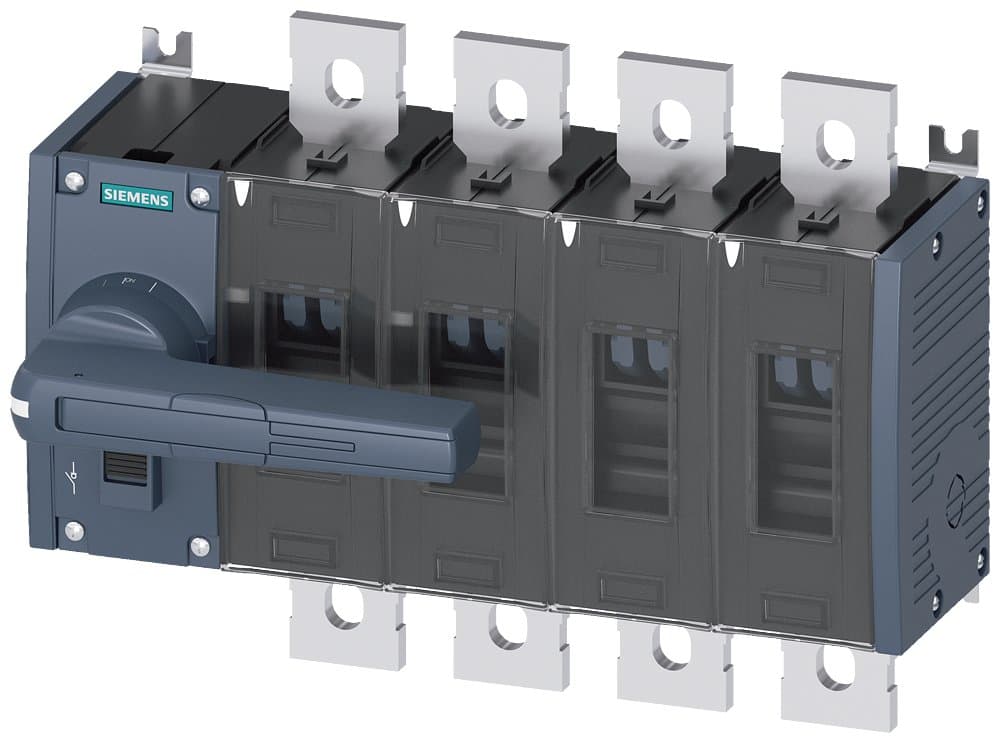

Product Model
3KD4642-0QE10-0
Selling Points
- 1Reliable protection from electrical accidents with a safety isolating function.
- 2Rugged technology for high system availability in various industrial settings.
- 3Wide range of applications including wind power and solar plants.
- 4Simple retrofitting of additional functions with an extensive range of accessories.
- 5Quick installation on standard mounting rails with frame sizes up to 200A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 4; Rated Current 630A, 4P, Complete Set, Front Operation, with Direct Front Operation Mechanism, Gray Handle, Operation Mechanism on the Left Side of the Switch, Surface Mount, Flat Connection |
Mounting Type | Surface Mount | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 630 |
Specification | 3KD Specification 4 [500-1000A] | Switch Type | Complete Set, Front Operation, with Direct Front Operation Mechanism, Gray Handle, Operation Mechanism on the Left Side of the Switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD4642-0QE10-0 |
Specifications may be subject to change without notice
