Product Model

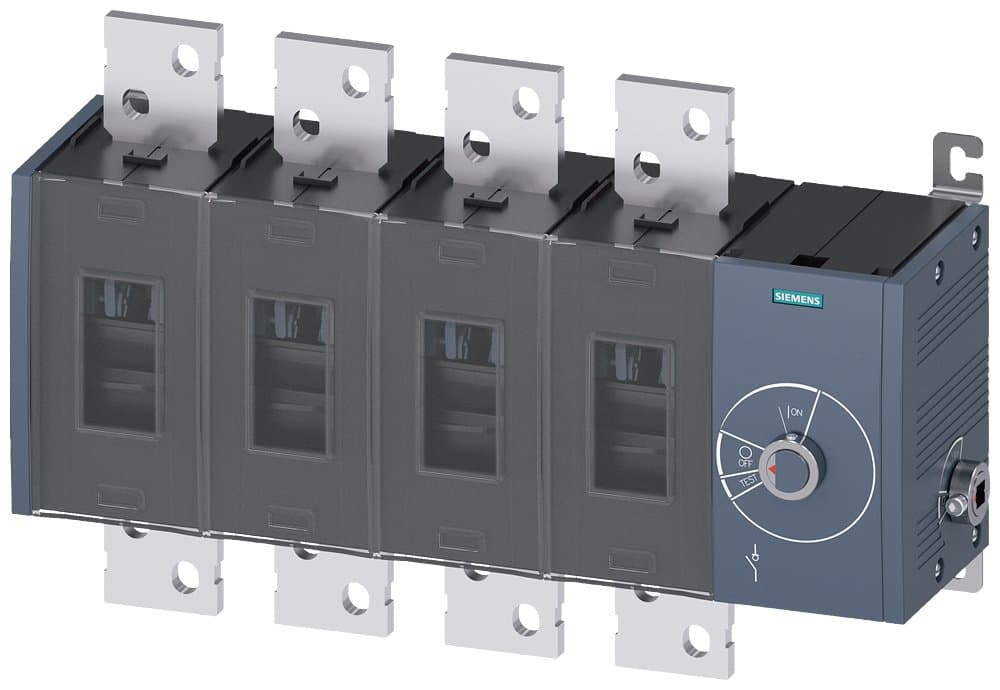

3KD5244-0RE40-0
Selling Points
- 1High-power switch disconnector rated at 1250 A.
- 2Compact size with a 4-pole side operating mechanism.
- 3Ideal for emergency switching-off with tolerance compensation.
- 4Designed for reduced downtime with fast shipping options.
- 5100% insured shipping for added reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated current 1250A, 4P, basic unit without handle, side operation mechanism located on the right side of the switch, surface mounting, flat connection |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 1250 |
Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, side operation mechanism located on the right side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD5244-0RE40-0 |
Specifications may be subject to change without notice
