Product Model

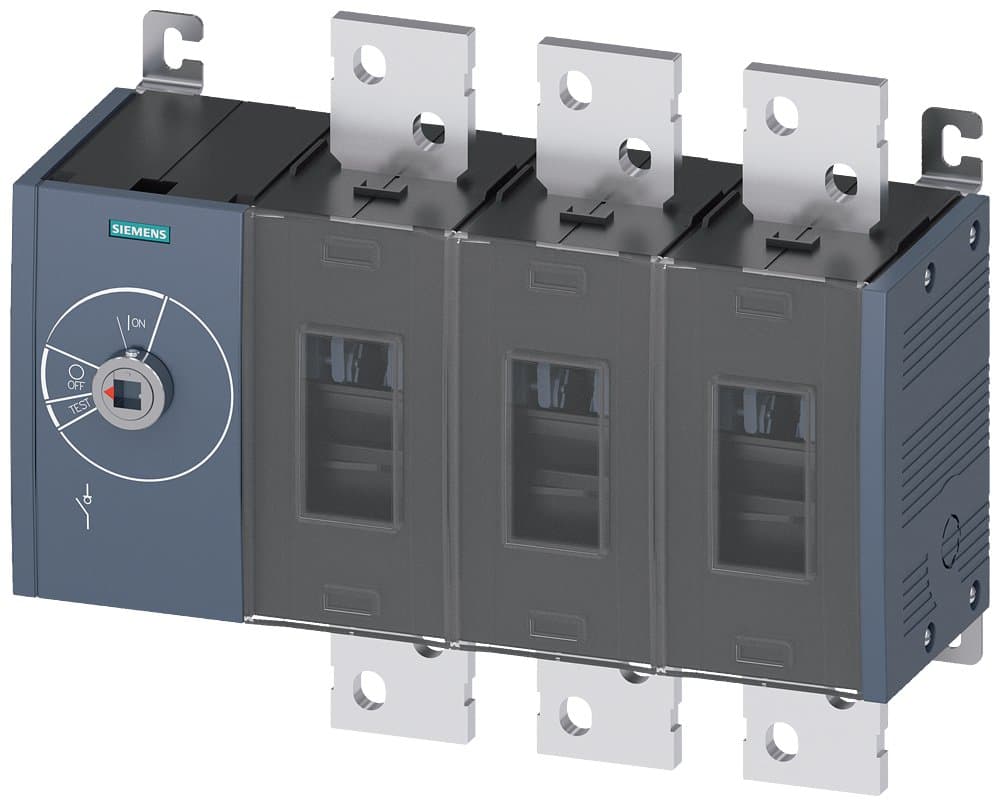

3KD5430-0RE10-0
Selling Points
- 1High current rating of 1600A for reliable operation.
- 23-pole configuration for versatile electrical connections.
- 3Front operating mechanism for easy access and control.
- 4Insulation voltage of 1000V for enhanced safety and durability.
- 5Suitable for various applications including main switches and safety switches.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated current 1600A, 3P, basic unit without handle, front operation mechanism on the left side of the switch, surface mounting, flat connection, |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 3P | In(A) | 1600 |
Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD5430-0RE10-0 |
Specifications may be subject to change without notice
