Product Model

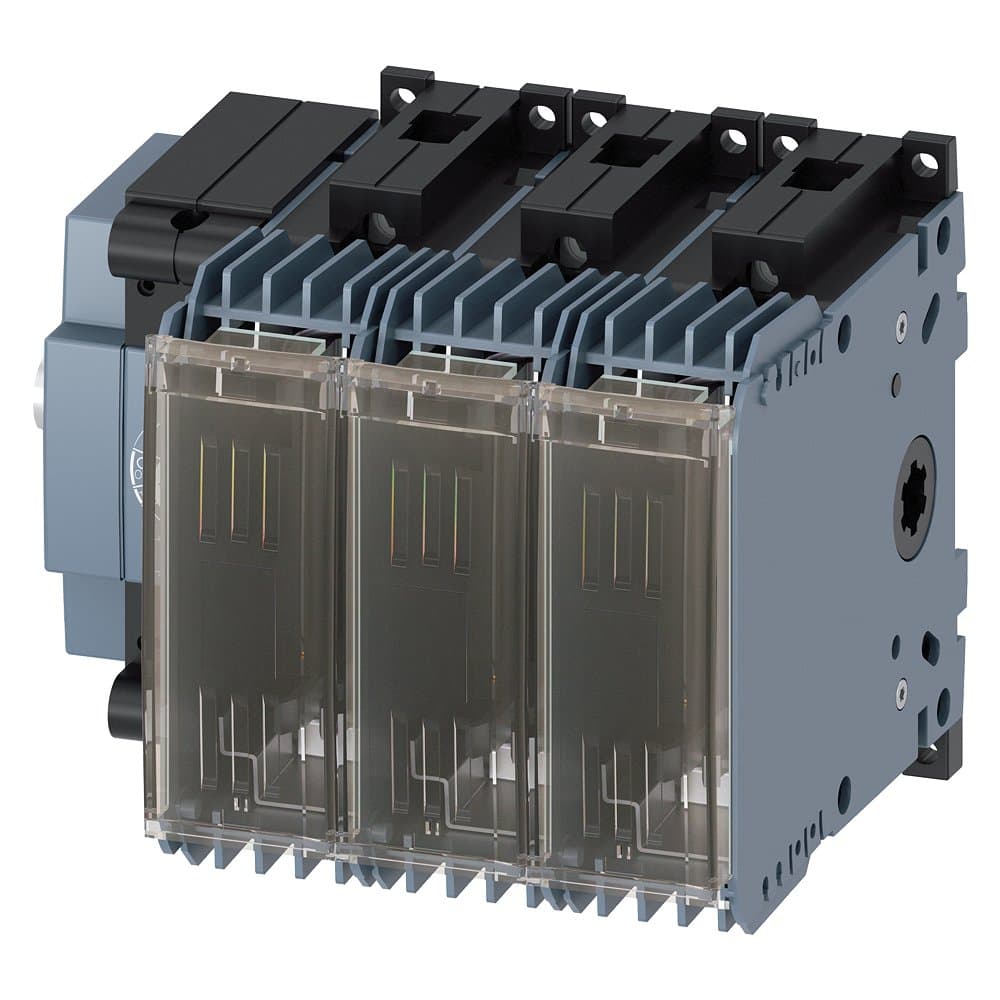

3KF1303-4LB11
Selling Points
- 1Compact size (75x 75 mm) with an 8x 8 mm shaft.
- 2Emergency switching-off without tolerance compensation.
- 3Robust door-coupling rotary operating mechanism.
- 4Suitable for various applications requiring precise control.
- 5High reliability and durability in electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 32A, Basic Unit - Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Left Side of the Switch, Surface Mounting |
Mounting Type | Surface Mounting | Fuse Specification | Size: 00/000 |
Terminal Type | Box Terminal | Poles | 3P |
In(A) | 32 | Specification | 3KF1_32 |
Switch Type | Basic unit, side operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF1303-4LB11 |
Specifications may be subject to change without notice
