Product Model

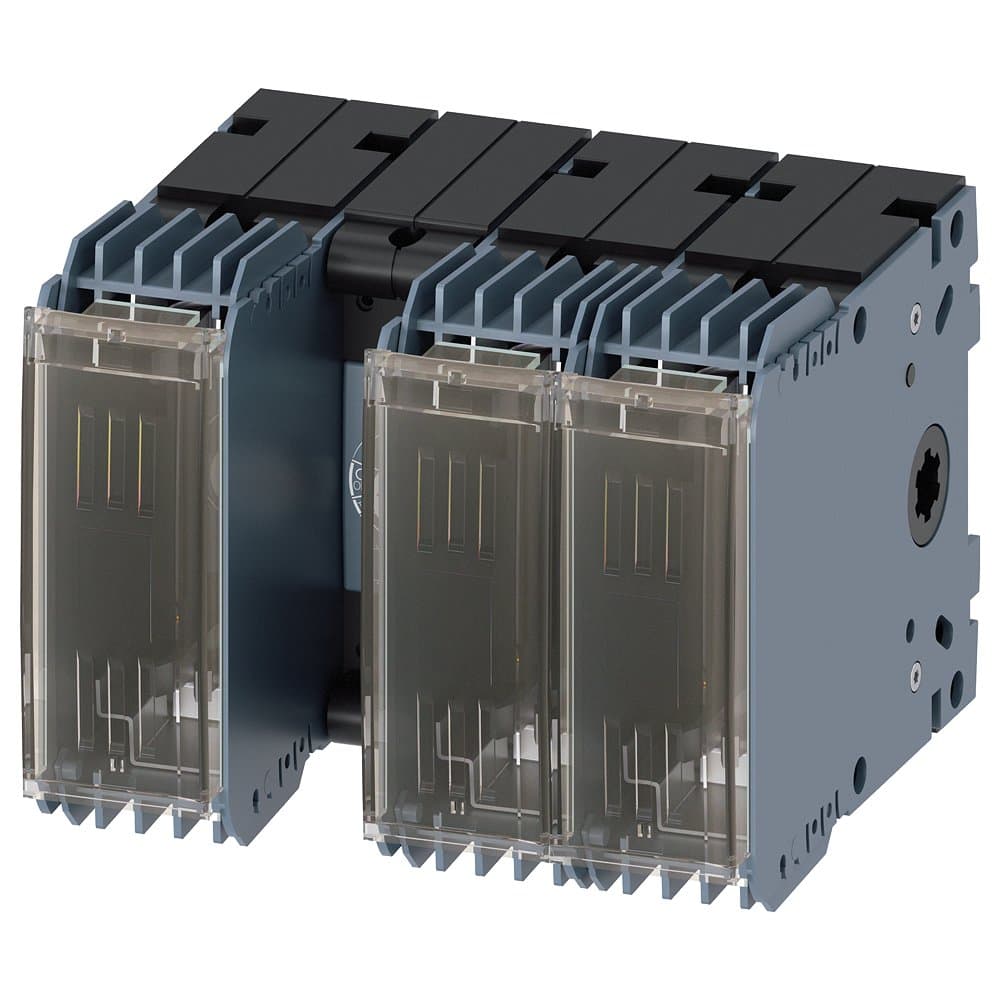

3KF1306-0MR11
Selling Points
- 1Handles up to 63A of current, ensuring robust performance in demanding electrical systems.
- 2Designed for three-pole applications, providing comprehensive control and safety.
- 3Compatible with low-voltage high rupturing capacity (HRC) fuses, enhancing reliability and safety.
- 4Compact size (size 2) makes it suitable for various installation scenarios, including space-constrained environments.
- 5Meets RoHS and WEEE directives, ensuring environmental sustainability and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 63A, Basic Unit - Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch, Surface Mounting |
Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
Terminal Type: | Rear Flat Terminal | Number of Poles: | 3P |
In(A): | 63 | Specification: | 3KF1_63 |
Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF1306-0MR11 |
Specifications may be subject to change without notice
