Product Model

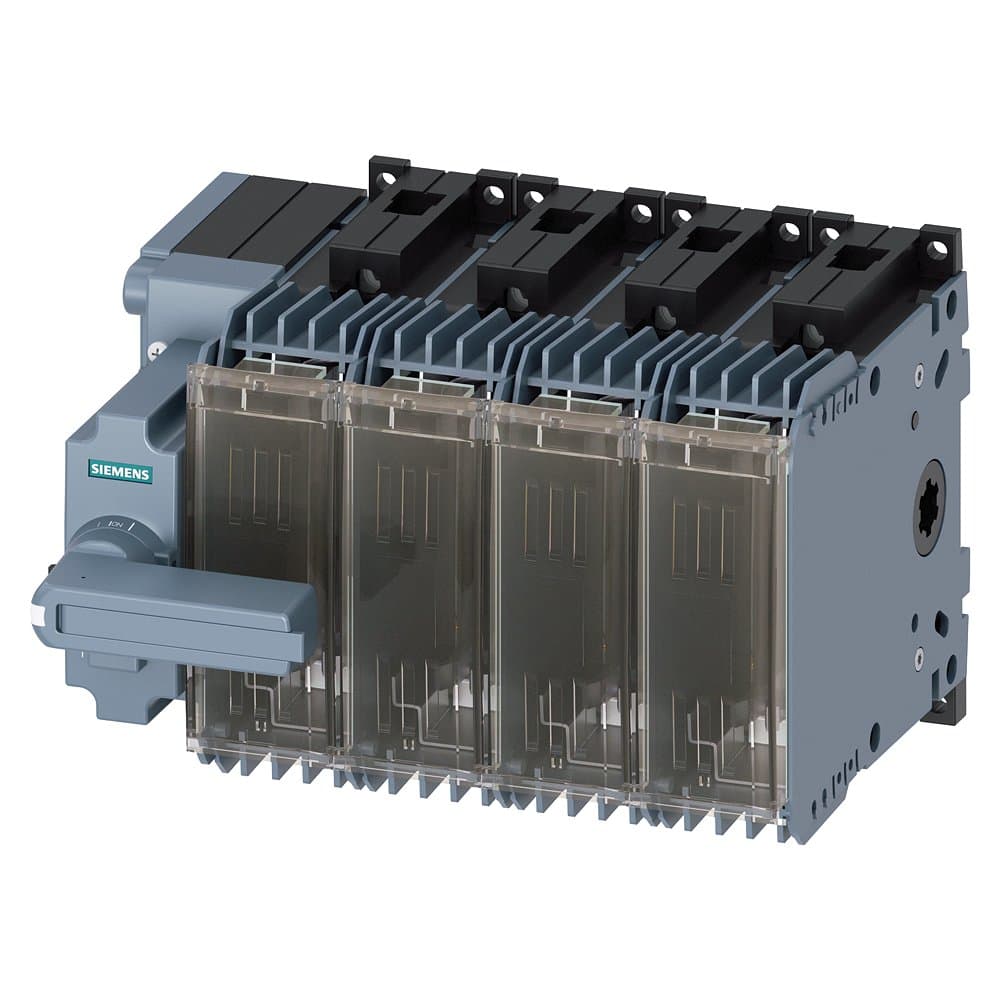

3KF1406-2LB11
Selling Points
- 1High Current Rating: Rated up to 63 A for reliable operation in various electrical applications.
- 2Versatile Mounting Options: Available for floor mounting and 40/60 mm busbar system for flexible installation.
- 3Electromechanical Monitoring: Equipped with electromechanical and electronic fuse monitoring for enhanced safety.
- 4Durable Construction: Built with robust materials to withstand short-circuit currents up to 6 kA.
- 5Easy Operation: Front-operating mechanism for convenient manual operation from the front.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), rated current 63A, kit type, front operation, with direct operating mechanism gray handle, surface mount |
Mounting Type: | Surface mount | Fuse Specification: | Size: 00/000 |
Terminal Type: | Box terminal | Number of Poles: | 4P |
In(A): | 63 | Specification: | 3KF1_63 |
Switch Type: | Kit type, front operation, with direct operating mechanism gray handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF1406-2LB11 |
Specifications may be subject to change without notice
