Product Model

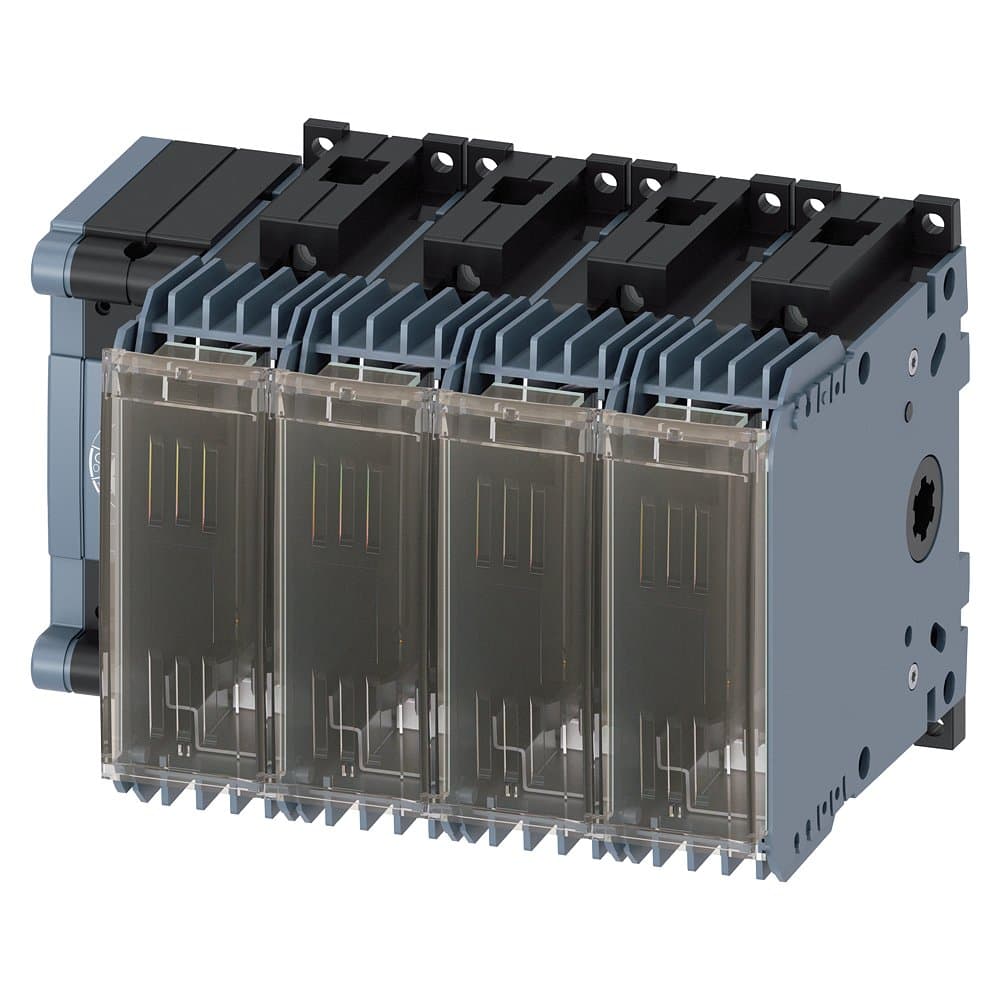

3KF1408-0LB11
Selling Points
- 1Precise control with a standard rotary mechanism.
- 2Compact size: 75x75 mm, shaft 8x8 mm.
- 3Complete unit with handle size 45 mm.
- 4Suitable for various mounting positions and applications.
- 5High-quality construction with certified quality management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 80A, Basic Unit - Front Operation Mechanism, No Handle, Operation Mechanism Module Located on the Left Side of the Switch, Surface Mounting |
Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
Terminal Type: | Box Terminal | Number of Poles: | 4P |
In(A): | 80 | Specification: | 3KF1_80 |
Switch Type: | Basic unit, front operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF1408-0LB11 |
Specifications may be subject to change without notice
