Product Model

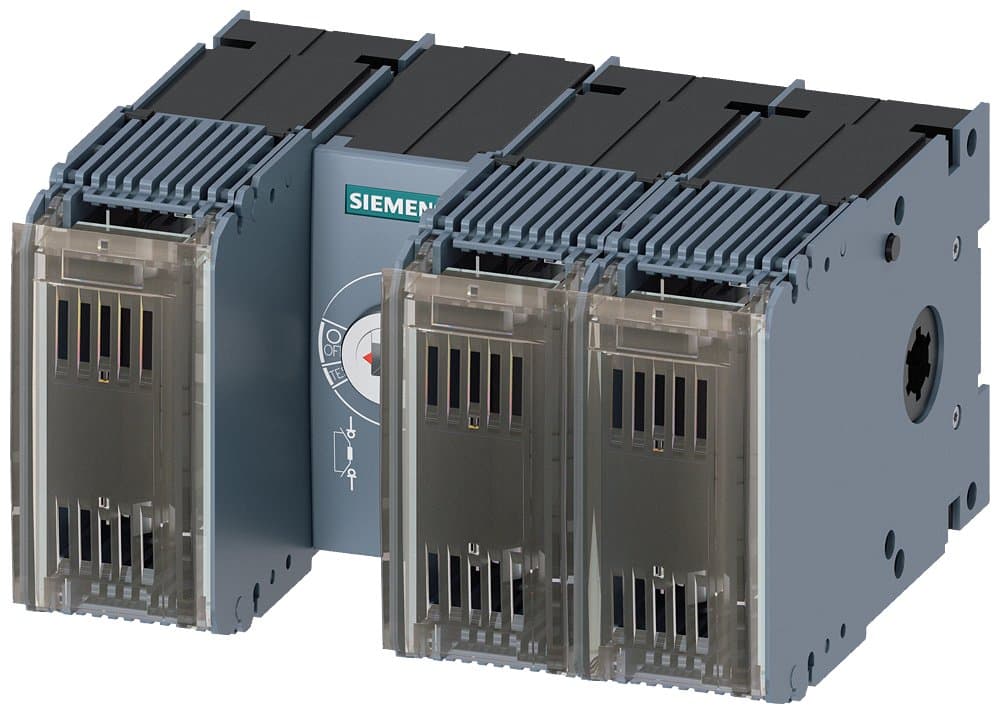

3KF2312-0MR11
Selling Points
- 1Handles 125A with a 3-pole LV HRC-fuse.
- 2Size 2, suitable for various electrical installations.
- 3Front-operating mechanism center for easy access and control.
- 4Meets RoHS and REACH compliance standards since 2019.
- 5Part of the SENTRON 3KF Switch Disconnectors with Fuses family, suitable for multiple electrical configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 125A, basic unit — front operating mechanism, without handle, operating mechanism module located at the center of the switch, surface mount |
Mounting Type | Surface mount | Fuse Specification | Size: 00/000 |
Terminal Type | Rear flat terminal | Number of Poles | 3P |
In(A) | 125 | Specification | 3KF2_125 |
Switch Type | Basic unit, front operating mechanism, without handle, operating mechanism module located at the center of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF2312-0MR11 |
Specifications may be subject to change without notice
