Product Model

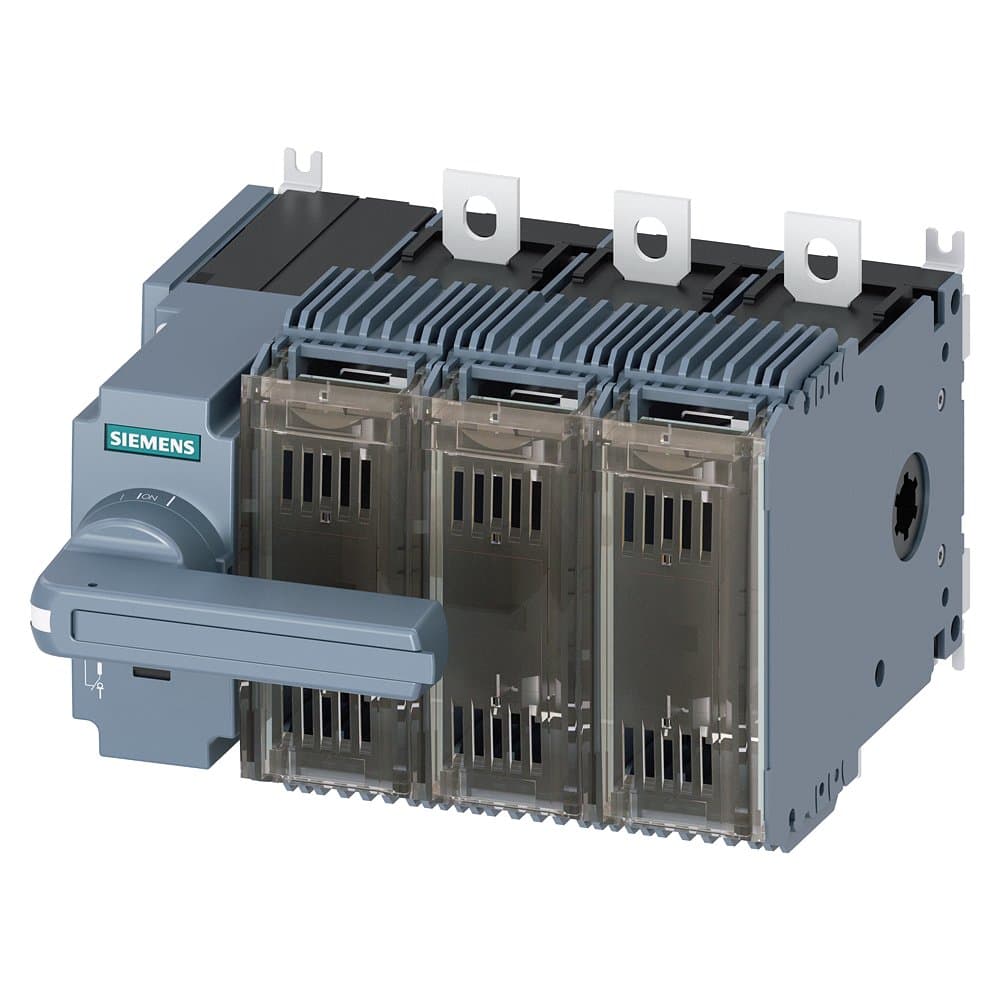

3KF2316-2LF11
Selling Points
- 1High Current Rating: Handles 160 A for reliable operation in low-voltage applications.
- 23-Pole Configuration: Suitable for three-phase electrical systems, ensuring balanced power distribution.
- 3LV HRC Fuse Compatibility: Designed to work seamlessly with low-voltage high rupture capacity (HRC) fuses.
- 4Enhanced Safety Features: Protects users from electric shock with permanent switch-on and switch-off capabilities under load.
- 5Versatile Mounting Options: Available for floor mounting, standard rail mounting, and front mounting, offering flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), rated current 160A, kit type, front operation, with direct operating mechanism gray handle, surface mounting |
Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
Terminal Type: | Flat Terminal | Number of Poles: | 3P |
In(A): | 160 | Specification: | 3KF2_160 |
Switch Type: | Kit type, front operation, with direct operating mechanism gray handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF2316-2LF11 |
Specifications may be subject to change without notice
