Product Model

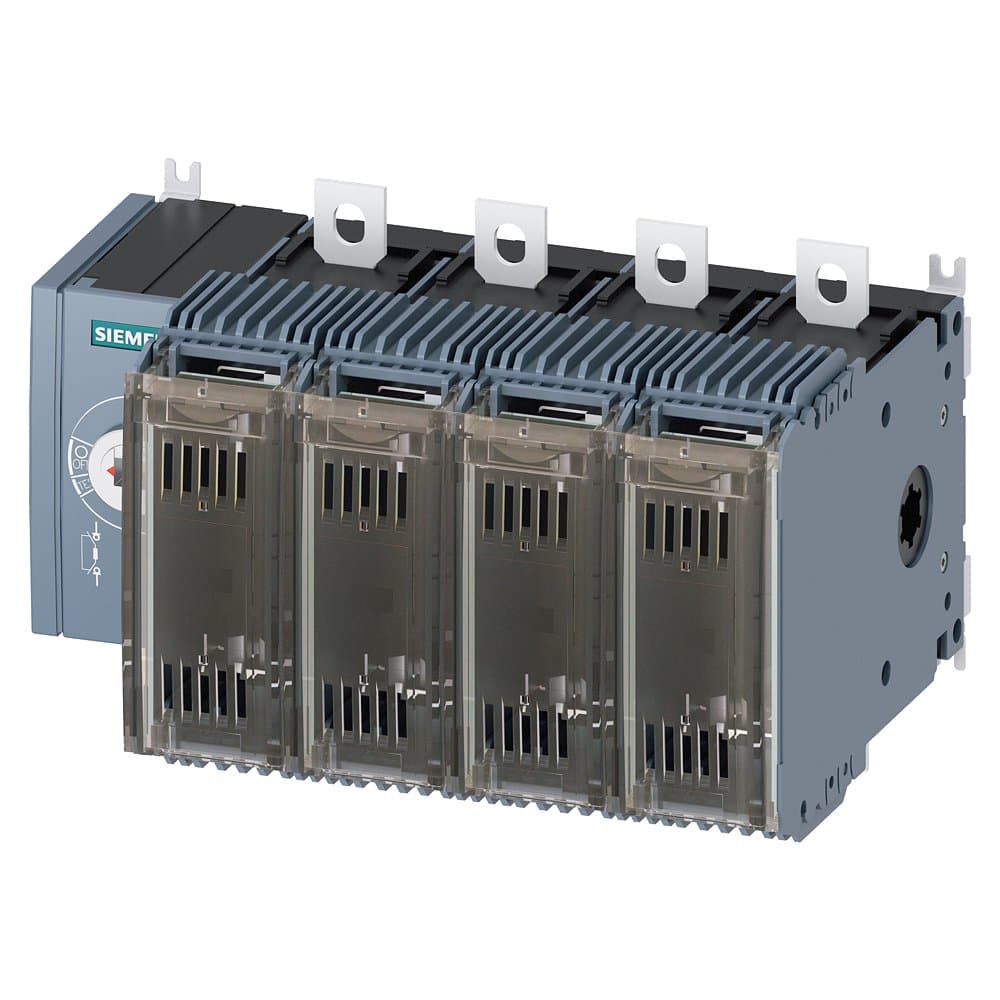

3KF2412-0LF11
Selling Points
- 1High Current Rating: Handles up to 125 A with fuse protection.
- 2Compact Design: Suitable for space-limited installations with a compact size.
- 3Versatile Mounting Options: Front and floor mounting options available for flexibility.
- 44-Pole Configuration: Ideal for applications requiring multiple poles for enhanced functionality.
- 5Reliable Operation: Meets IEC 60947-3 standards for reliable and safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 125A, Basic Unit - Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch, Surface Mounting |
Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
Terminal Type: | Flat Terminal | Number of Poles: | 4P |
In(A): | 125 | Specification: | 3KF2_125 |
Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF2412-0LF11 |
Specifications may be subject to change without notice
