Product Model

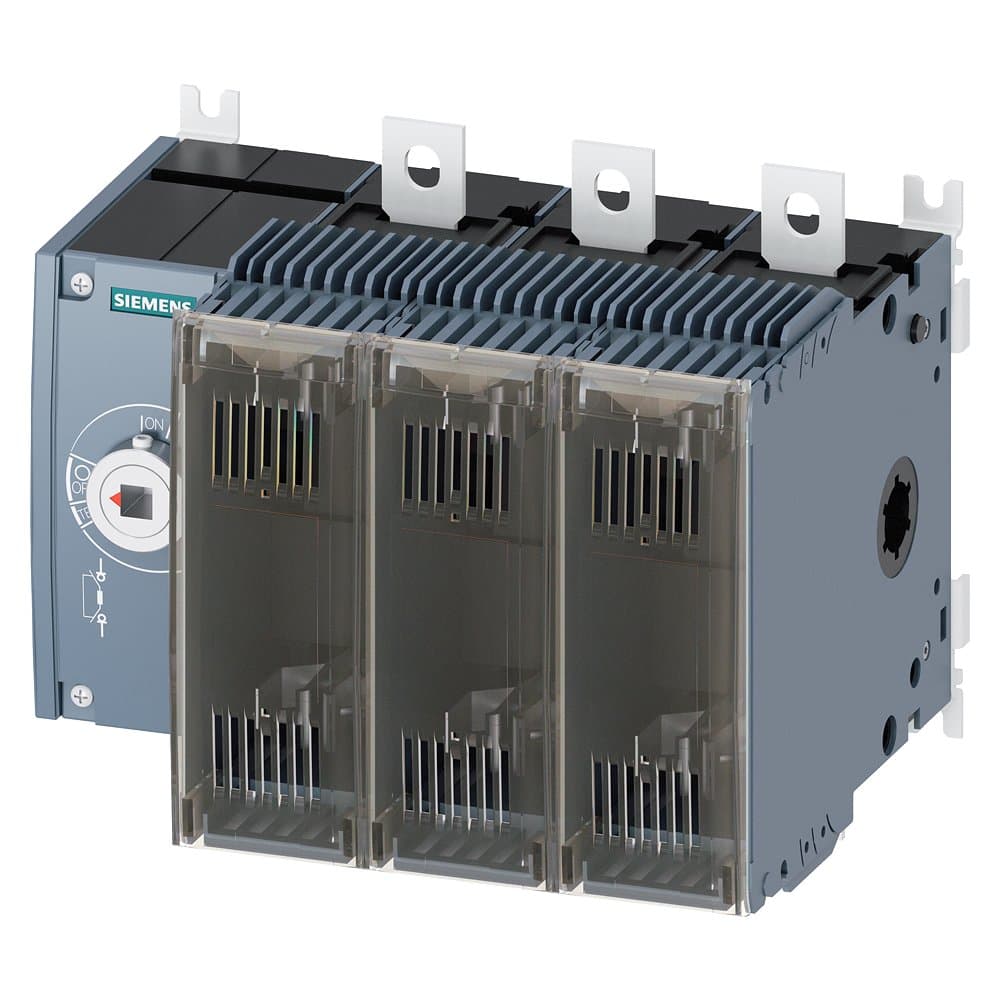

3KF3325-0LF11
Selling Points
- 1High current capability up to 250 A.
- 2Three-pole design for efficient electrical connections.
- 3Front operating mechanism for easy operation.
- 4Compatible with LV HRC fuse sizes 0 and 1.
- 5Basic unit without handle for compact design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (general fuse), rated current 250A, basic unit — front operation mechanism, no handle, operation mechanism module located on the left side of the switch, surface mount |
Mounting Type: | Surface mount | Fuse Specification: | Size: 1 |
Terminal Type: | Flat terminal | Number of Poles: | 3P |
In(A): | 250 | Specification: | 3KF3_250 |
Switch Type: | Basic unit, front operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF3325-0LF11 |
Specifications may be subject to change without notice
