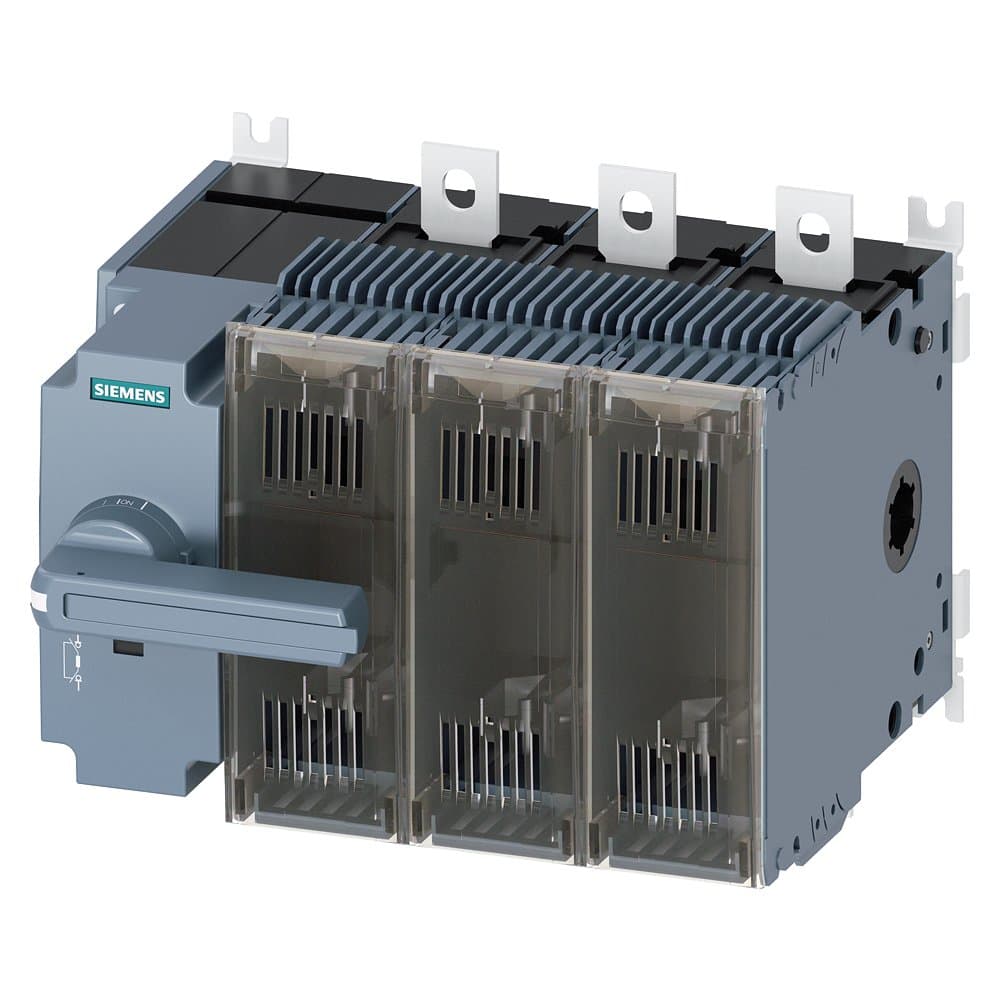

Product Model
3KF3325-2LF11
Selling Points
- 1Compatible with LV HRC fuses Sz. 0 and 1 for reliable electrical isolation.
- 2Equipped with a direct operating mechanism for easy and efficient operation.
- 3Built with high short-circuit strength for high system availability and durability.
- 4Includes locking functions, touch protection, and automatically interlocked fuse cover for enhanced safety.
- 5Quick installation on standard mounting rails with frame sizes up to 80 A, minimizing downtime and installation costs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), rated current 250A, kit type, front operation, with direct operating mechanism gray handle, surface mounting |
Mounting Type: | Surface Mounting | Fuse Specification: | Size: 1 |
Terminal Type: | Blade Terminal | Number of Poles: | 3P |
In(A): | 250 | Specification: | 3KF3_250 |
Switch Type: | Kit type, front operation, with direct operating mechanism gray handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF3325-2LF11 |
Specifications may be subject to change without notice
