Product Model

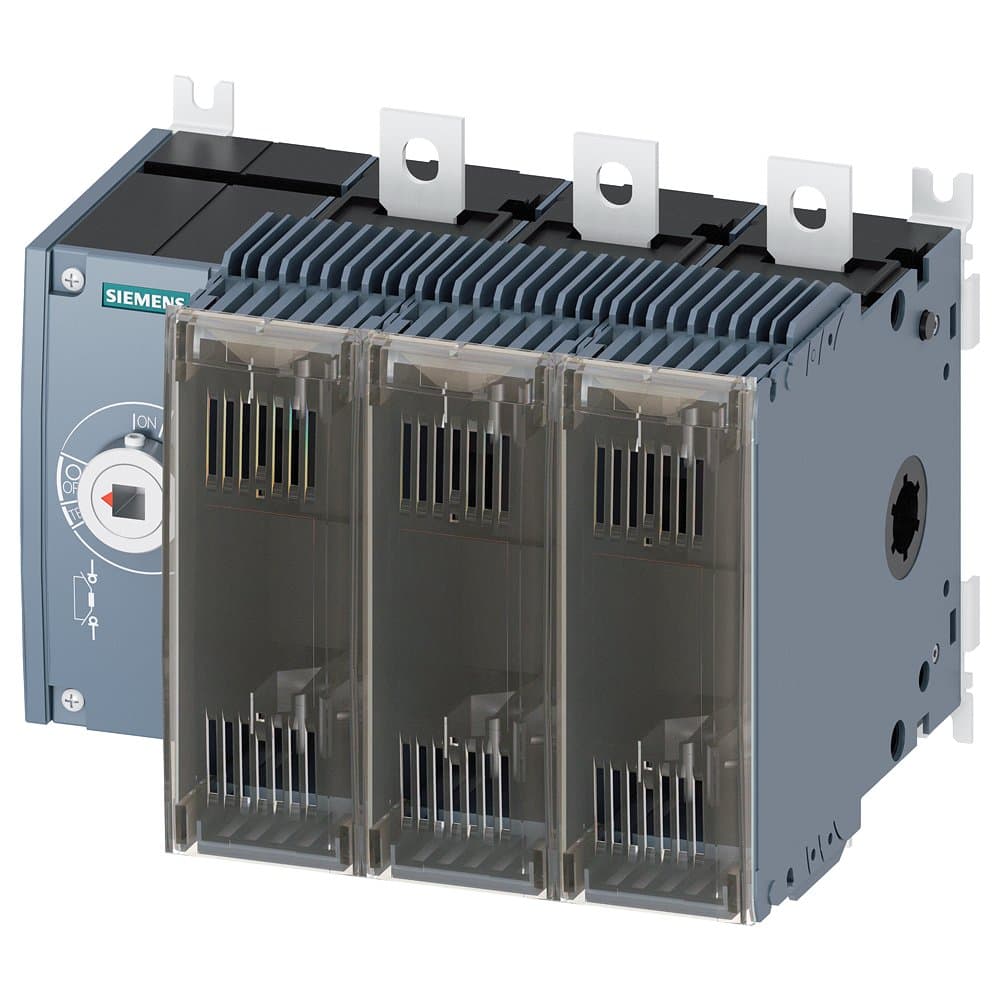

3KF3325-4LF11
Selling Points
- 1High Current Rating: Handles up to 250 A for reliable power distribution.
- 2Versatile Mounting Options: Suitable for floor mounting, side operating, and distribution board integration.
- 3Enhanced Safety Features: Protects against short circuits and overloads with integrated fuse.
- 4Compact Design: Ideal for space-limited applications with a compact design.
- 5Comprehensive Accessories: Includes terminal covers and operating mechanisms for easy installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (general fuse), rated current 250A, basic unit — side operation mechanism, no handle, operation mechanism module located on the left side of the switch, surface mount |
Mounting Type: | Surface mount | Fuse Specification: | Size: 1 |
Terminal Type: | Flat terminal | Number of Poles: | 3P |
In(A): | 250 | Specification: | 3KF3_250 |
Switch Type: | Basic unit, side operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF3325-4LF11 |
Specifications may be subject to change without notice
