Product Model

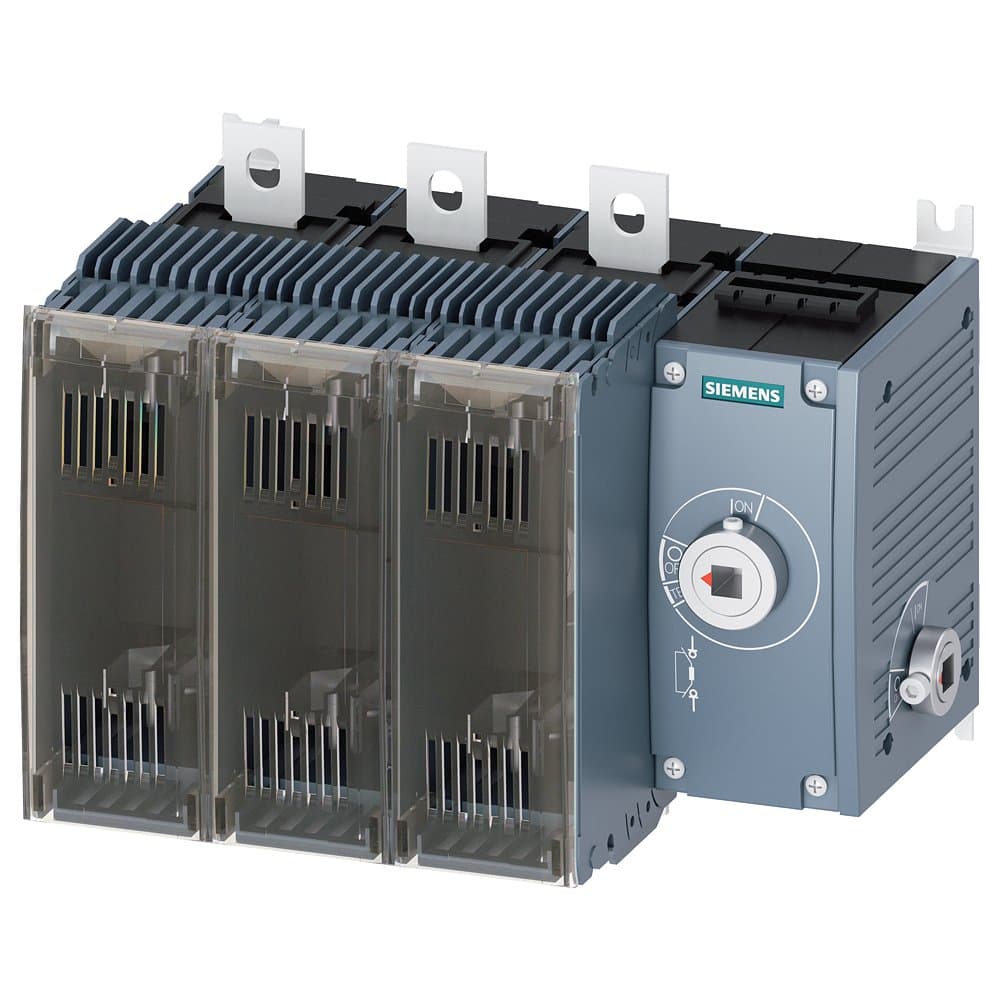

3KF3325-4RF11
Selling Points
- 1High Current Rating: 250A LV HRC fuse switch disconnector for reliable high-current applications.
- 2Side Operating Mechanism: Convenient side operating mechanism for easy access and operation.
- 33-Pole Configuration: Suitable for 3-pole configurations, ensuring efficient power distribution.
- 4Compact Design: Compact design allows for space-saving installation in various electrical systems.
- 5Comprehensive Accessories: Compatible with a range of accessories including terminal covers and operating mechanisms.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (general fuse), rated current 250A, basic unit — side operation mechanism, no handle, operation mechanism module located on the right side of the switch, surface mount |
Mounting Type: | Surface mount | Fuse Specification: | Size: 1 |
Terminal Type: | Flat terminal | Number of Poles: | 3P |
In(A): | 250 | Specification: | 3KF3_250 |
Switch Type: | Basic unit, side operation mechanism, no handle, operation mechanism module located on the right side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF3325-4RF11 |
Specifications may be subject to change without notice
