Product Model
3KF3425-2LF11
Selling Points
- 1High Current Rating: Handles up to 250 A for reliable power distribution.
- 2Four-Pole Configuration: Suitable for various electrical installations with four poles.
- 3Low-Voltage HRC Fuse: Ensures protection against short circuits and overloads.
- 4Durable Construction: Built to withstand harsh electrical environments.
- 5Versatile Mounting Options: Available for floor, rail, and front mounting configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |

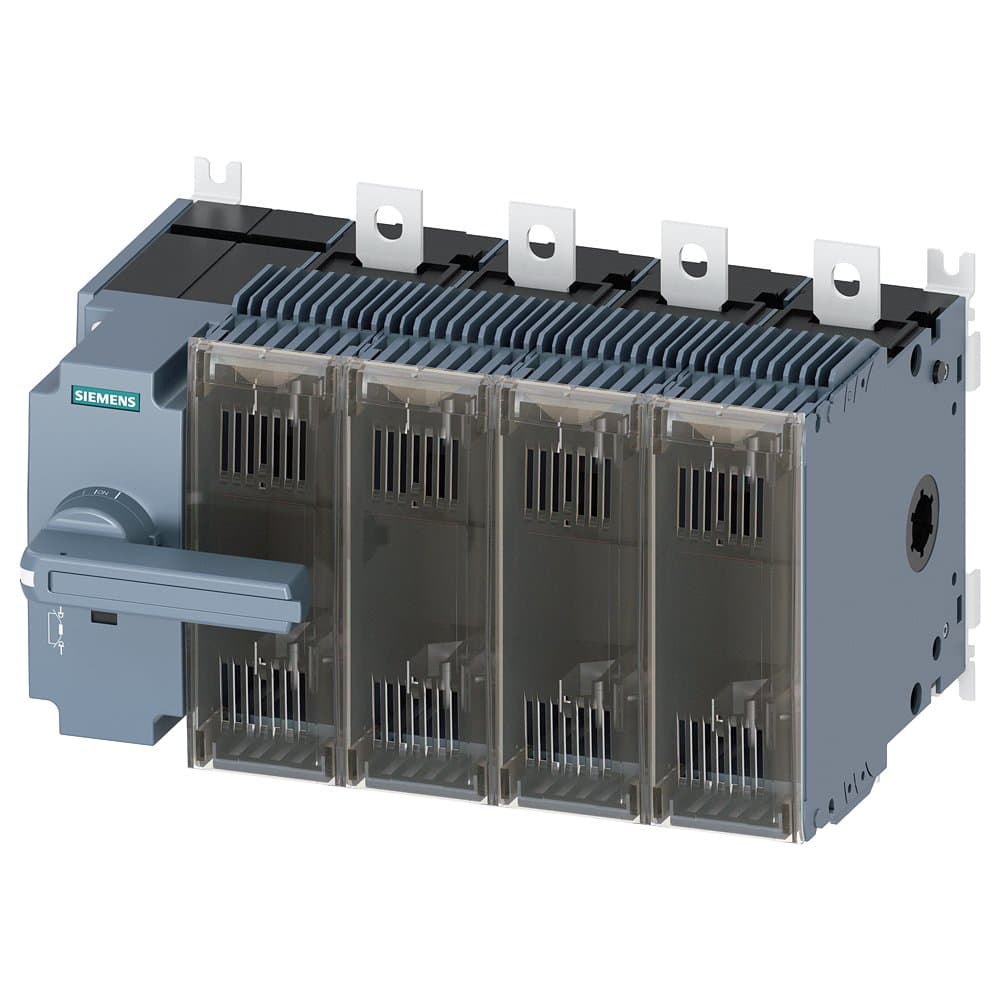

Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 250A, kit type, front operation, with direct operating mechanism gray handle, surface mounting |
Mounting Type | Surface Mounting | Fuse Specification | Size: 1 |
Terminal Type | Blade Terminal | Number of Poles | 4P |
In(A) | 250 | Specification | 3KF3_250 |
Switch Type | Kit type, front operation, with direct operating mechanism gray handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF3425-2LF11 |
Specifications may be subject to change without notice
