Product Model

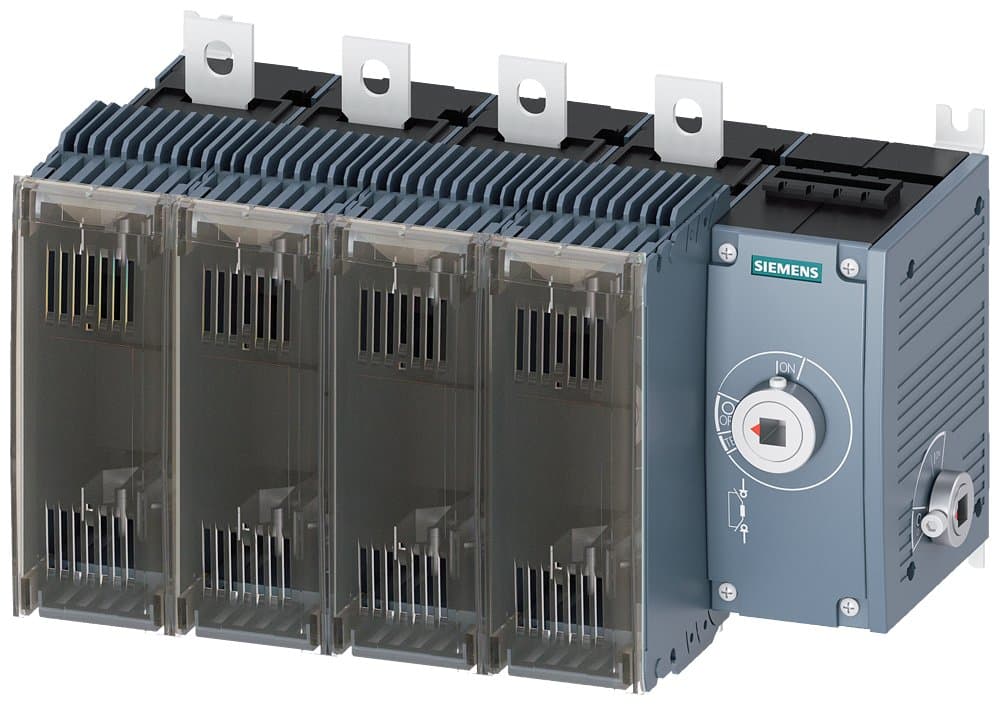

3KF3425-4RF11
Selling Points
- 1250 A fuse rating for reliable high-current applications.
- 2Space-efficient design suitable for installations where space is limited.
- 3Easy access and operation from the side for enhanced usability.
- 4Supports four-pole configurations for comprehensive electrical control.
- 5Compatible with LV HRC fuse links (Sz. 0 and 1) for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), rated current 250A, basic unit — side operation mechanism, no handle, operation mechanism module located on the right side of the switch, surface mount |
Mounting Type: | Surface mount | Fuse Specification: | Size: 1 |
Terminal Type: | Flat terminal | Number of Poles: | 4P |
In(A): | 250 | Specification: | 3KF3_250 |
Switch Type: | Basic unit, side operation mechanism, no handle, operation mechanism module located on the right side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF3425-4RF11 |
Specifications may be subject to change without notice
