Product Model

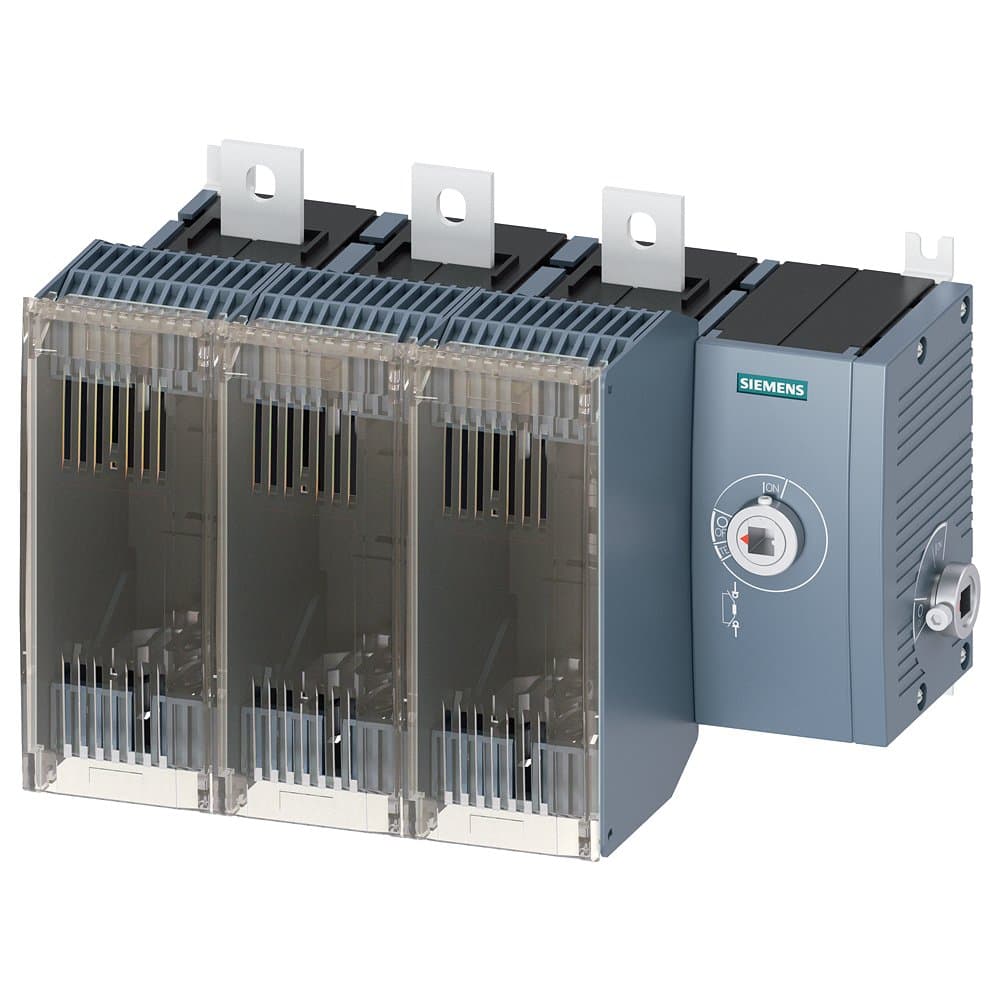

3KF4340-4RF11
Selling Points
- 1Built with durable materials for long-lasting performance.
- 2Ensures safe and reliable switching operations under load.
- 3Suitable for various mounting options, including side operating mechanisms.
- 4Ideal for LV HRC fuse applications, ensuring compatibility with different electrical systems.
- 5Simple setup and integration with existing electrical infrastructure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 400A, Basic Unit — Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch, Surface Mount |
Mounting Type | Surface Mount | Fuse Specification | Size: 1/2 |
Terminal Type | Flat Terminal | Poles | 3P |
In(A) | 400 | Specification | 3KF4_400 |
Switch Type | Basic Unit, Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF4340-4RF11 |
Specifications may be subject to change without notice
