Product Model

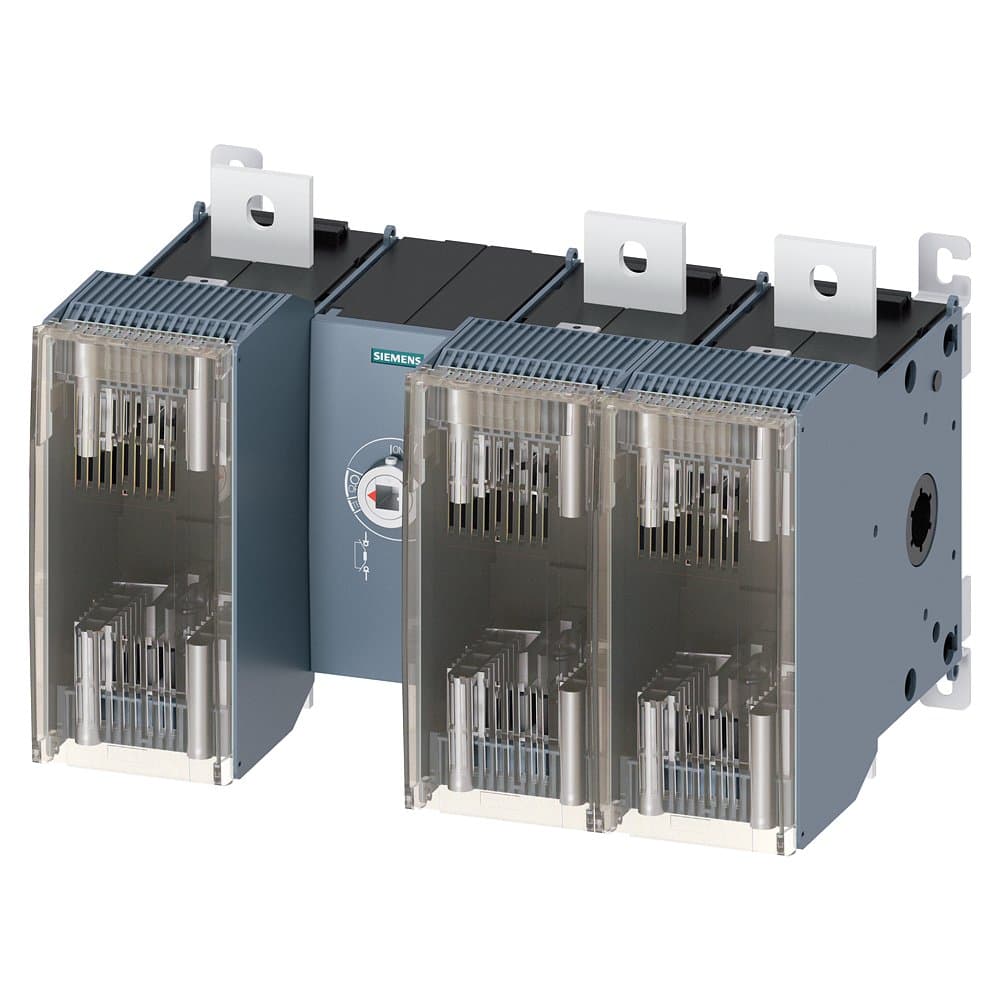

3KF5363-0MF11
Selling Points
- 1630 A maximum current rating for reliable operation.
- 2Fulfils a safety isolation function to prevent electrical accidents.
- 3Equipped with an emergency switching-off mechanism for quick shutdown.
- 4Compatible with NH2 and NH3 mechanical fuse sizes.
- 5Functional between -25°C and +70°C, ensuring broad environmental compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 630A, Basic Unit — Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch, Surface Mounting |
Mounting Type: | Surface Mounting | Fuse Specification: | Size: 2/3 |
Terminal Type: | Flat Terminal | Poles: | 3P |
In(A): | 630 | Specification: | 3KF5_630 |
Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF5363-0MF11 |
Specifications may be subject to change without notice
