SiemensIsolator Switch
Product Model

3KF5363-4RF11

Manufacturer

Siemens

Category

Isolator Switch

Product ID

222486

In Stock
Last updated: 2025/4/29
View Specifications

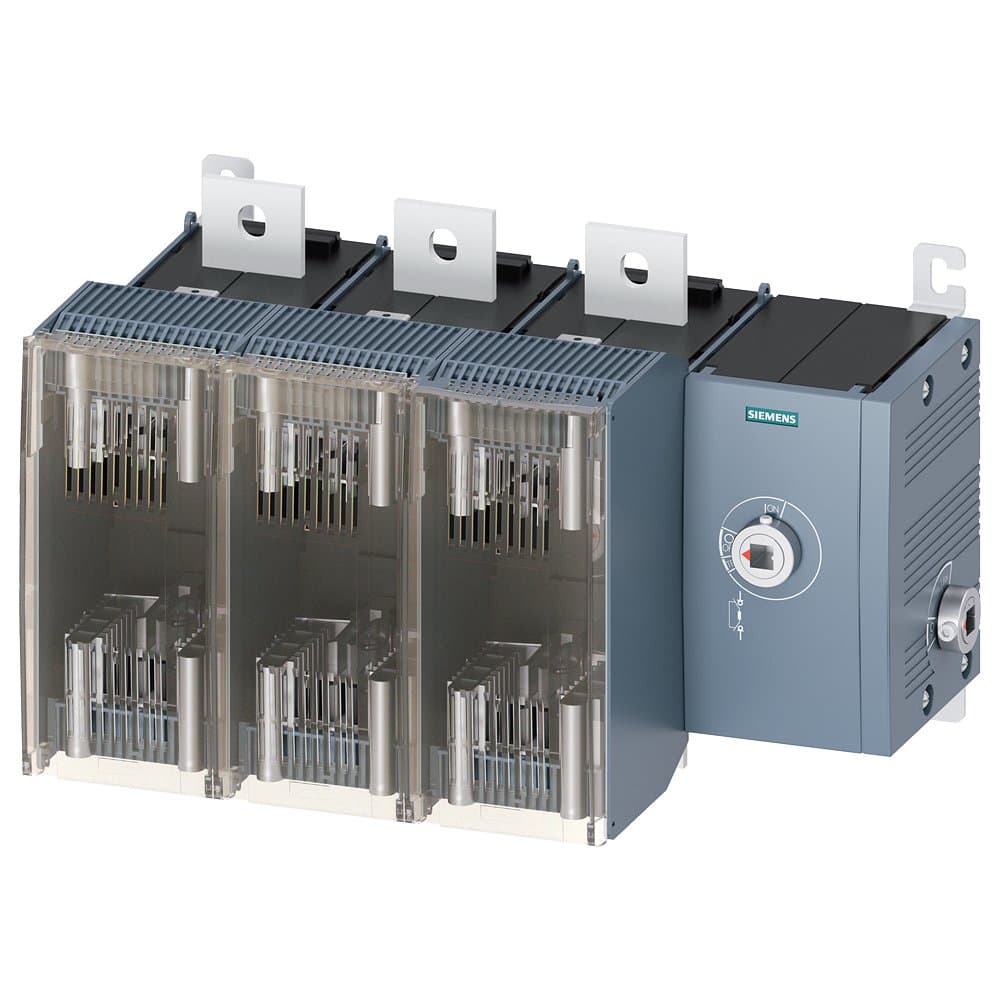

Siemens 3KF5363-4RF11

Selling Points

  • 1The 3KF5363-4RF11 features a compact size, ideal for space-constrained applications.
  • 2Supports up to 630 A, making it suitable for high-power electrical systems.
  • 3Designed with a 3-pole configuration for enhanced functionality and reliability.
  • 4Equipped with a side operating mechanism for easy access and operation.
  • 5Built with high-quality materials to ensure long-lasting performance and minimal downtime.
Product Details
3KF5363-4RF11
Siemens

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
DC Insulation Voltage (V)
220VDC/440VDC
AC Rated Voltage (V)
690
Insulation Voltage (V)
1000
Description
3KF LV HRC (General Fuse), Rated Current 630A, Basic Unit — Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch, Surface Mount
Mounting Type
Surface Mount
Fuse Specification
Size: 2/3
Terminal Type
Flat Terminal
Poles
3P
In(A)
630
Specification
3KF5_630
Switch Type
Basic Unit, Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Right Side of the Switch
Lifecycle
Delivery Release (PM300)
Country of Origin
China
ECCN
N
AL
N
Model Number
3KF5363-4RF11

Specifications may be subject to change without notice
