Product Model

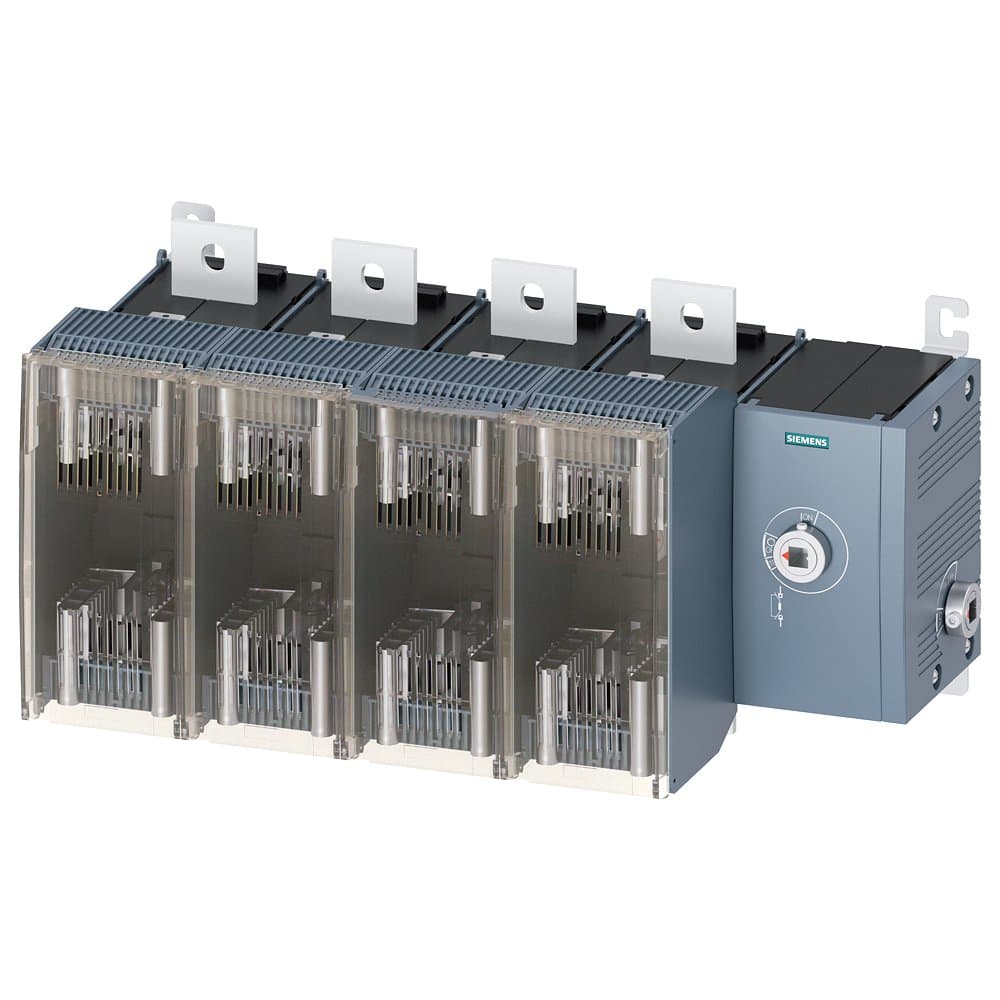

3KF5463-4RF11
Selling Points
- 1Compact design for space-saving applications.
- 2Suitable for LV HRC and BS fuse links.
- 34-pole version for enhanced functionality.
- 4Versatile mounting options including floor and distribution board mounting.
- 5Integrated current transformers and electronic fuse monitoring available.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 630A, basic unit — side operation mechanism, no handle, operation mechanism module located on the right side of the switch, surface mounting |
Mounting Type | Surface Mounting | Fuse Specification | Size: 2/3 |
Terminal Type | Flat Terminal | Number of Poles | 4P |
In(A) | 630 | Specification | 3KF5_630 |
Switch Type | Basic unit, side operation mechanism, no handle, operation mechanism module located on the right side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model | 3KF5463-4RF11 |
Specifications may be subject to change without notice
