Product Model

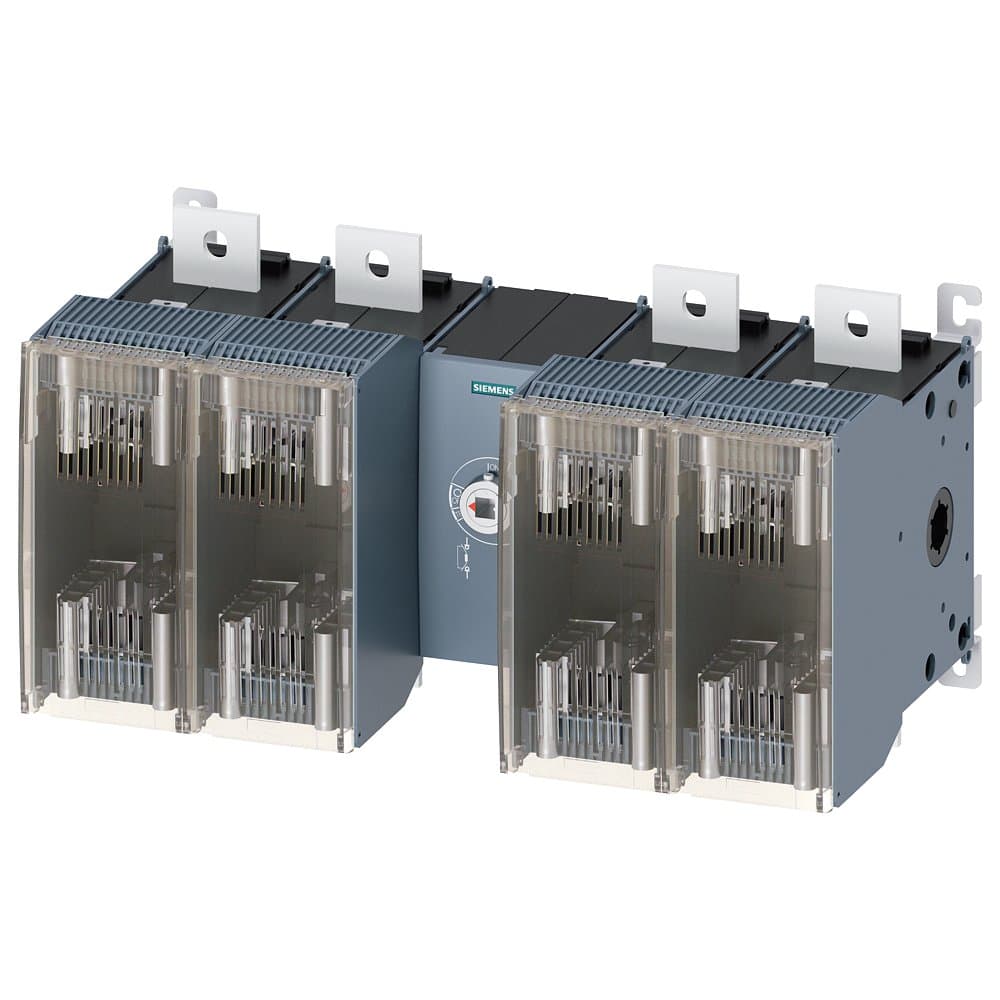

3KF5480-0MF11
Selling Points
- 1High Current Rating: Handles up to 800 A for reliable operation in demanding electrical systems.
- 2Compact Design: Size 5, 4-pole configuration for efficient space utilization in control panels.
- 3Enhanced Safety: Protects against electric shock with permanent switch-on and switch-off under load.
- 4Versatile Mounting: Suitable for floor mounting, mounting on standard rails, and front mounting options.
- 5Compliance Standards: Meets IEC 60947-3 and UL 508/UL60947-4-1 standards for maximum reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 800A, Basic Unit - Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch, Surface Mounting |
Installation Type: | Surface Mounting | Fuse Specification: | Size: 2/3 |
Terminal Type: | Flat Terminal | Number of Poles: | 4P |
In(A): | 800 | Specification: | 3KF5_800 |
Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF5480-0MF11 |
Specifications may be subject to change without notice
