Product Model

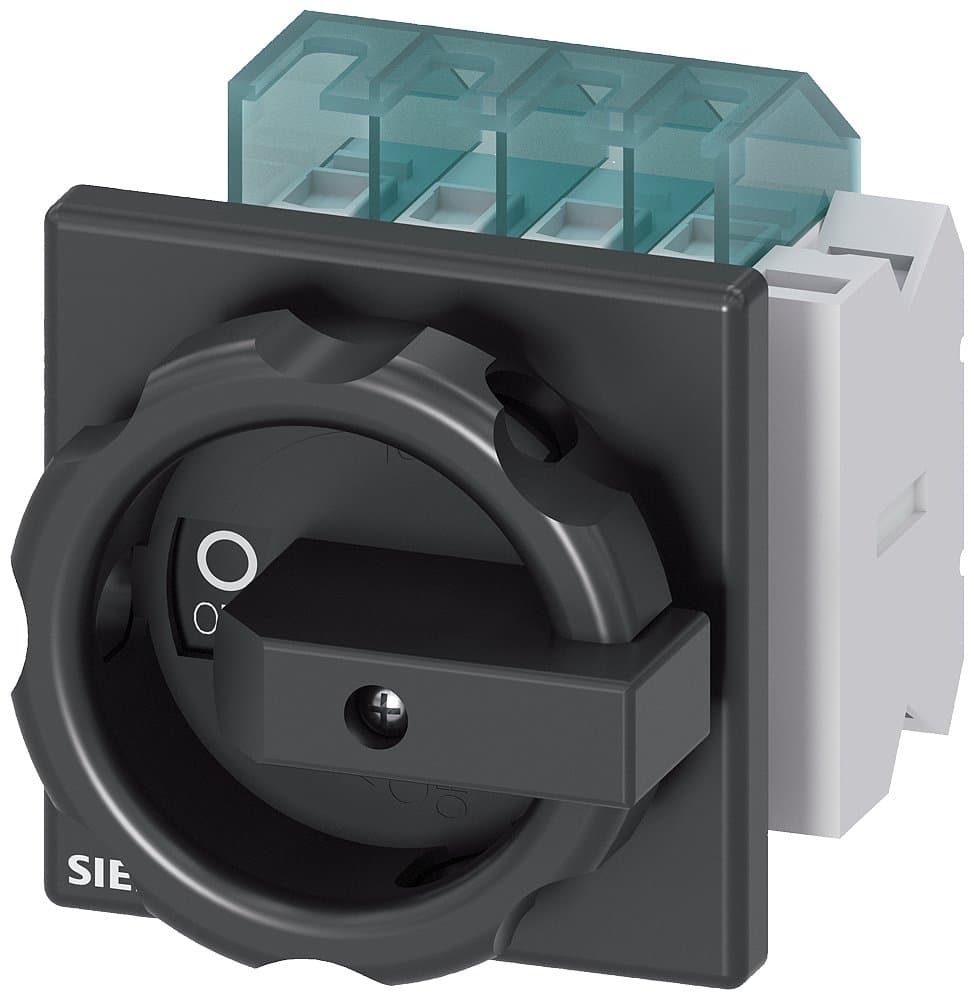

3LD2003-1TP51
Selling Points
- 1High-voltage switch rated for 690V AC.
- 21NO+1NC contact configuration for reliable operation.
- 3Amperage rating of 16-125A for versatile applications.
- 4Encapsulated design for durability and protection.
- 5Suitable for floor mounting and four-hole front mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, black handle, flush-mounted, four-hole mounting on cabinet door, AC-23A/7.5KW; 1NO+1NC | Installation Type: | Flush-mounted cabinet door with four-hole mounting |
Other: | AC-23A/7.5KW; 1NO+1NC | Number of Poles: | 3P |
In(A): | 16 | Specification: | 3LD20【16A】 |
Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2003-1TP51 |
Specifications may be subject to change without notice
