Product Model

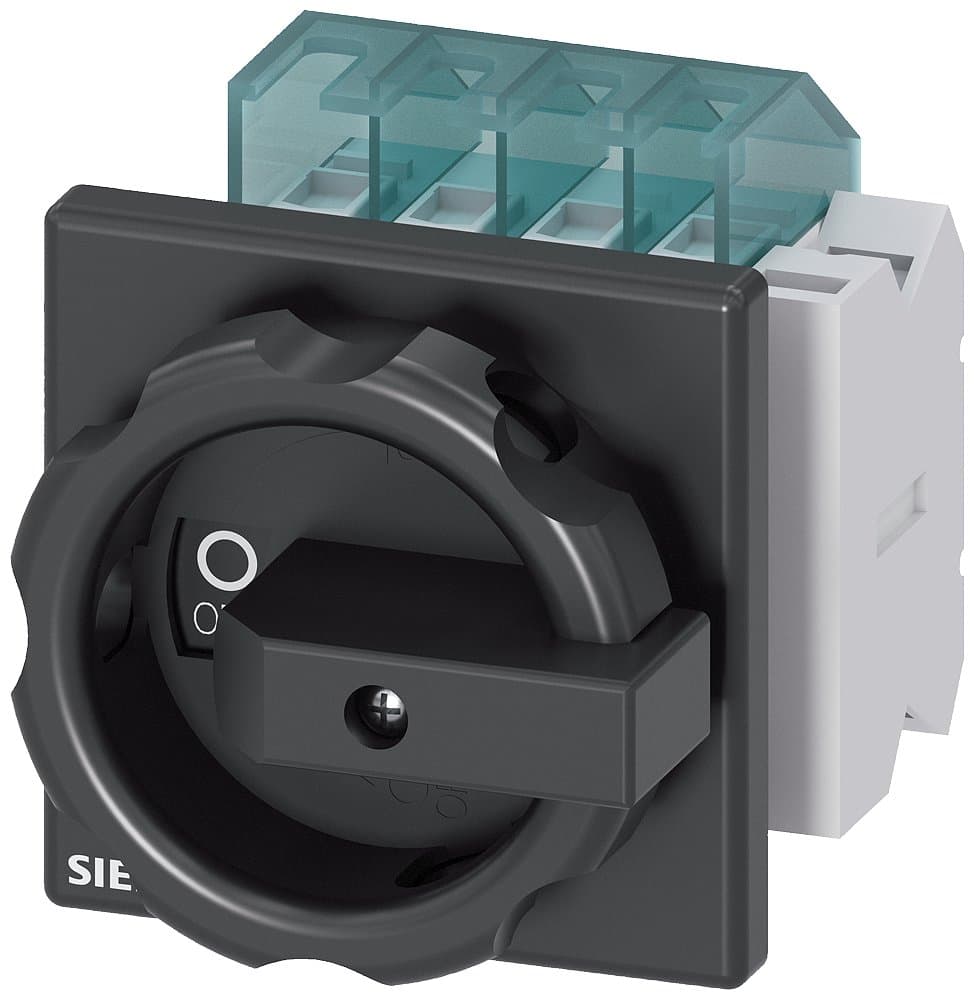

3LD2003-2EP51
Selling Points
- 1Designed for 100,000 mechanical service cycles and 6,000 electrical endurance cycles.
- 2Front-mounted with a short rotary knob for easy operation.
- 3Finger-safe and meets DIN EN 61346-2 standards.
- 44-hole mounting of the handle for secure installation.
- 5Operates at 7.5 kW at AC-23 A and 400 V, ensuring reliable power handling.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P+N, with rotary operating mechanism, black handle, flush-mounted, four-hole installation on cabinet door, AC-23A/7.5KW; 1NO+1NC | Installation Type: | Flush-mounted cabinet door with four-hole installation |
Others: | AC-23A/7.5KW; 1NO+1NC | Number of Poles: | 3P+N |
In(A): | 16 | Specification: | 3LD20【16A】 |
Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2003-2EP51 |
Specifications may be subject to change without notice
