Product Model

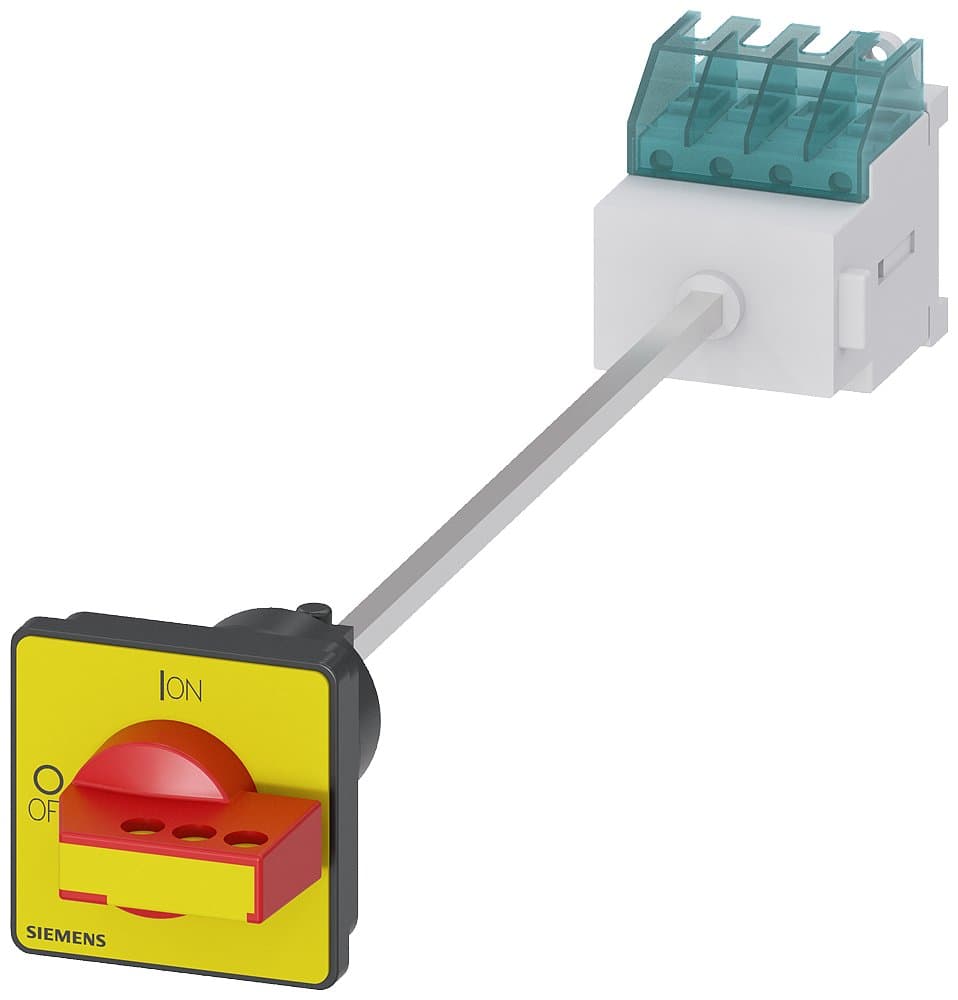

3LD2017-0TK13
Selling Points
- 1Emergency Stop Functionality: Ensures immediate shutdown in critical situations.
- 2Floor Mounting with Door Coupling: Easy installation and secure operation.
- 33-Pole Design: Handles high current loads efficiently.
- 416 A Current Rating: Suitable for various industrial applications.
- 57.5 kW Operating Power: Handles significant electrical loads at 400 V AC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P, with removable door-coupled rotary operation mechanism, red/yellow handle, base-mounted installation, cabinet door with four-hole mounting, AC-23A/7.5KW, UL508 certified | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
Other | AC-23A/7.5KW, UL508 certified | Number of Poles | 3P |
In(A) | 16 | Specification | 3LD20【16A】 |
Switch Type | Removable door-coupled rotary operation mechanism with red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2017-0TK13 |
Specifications may be subject to change without notice
